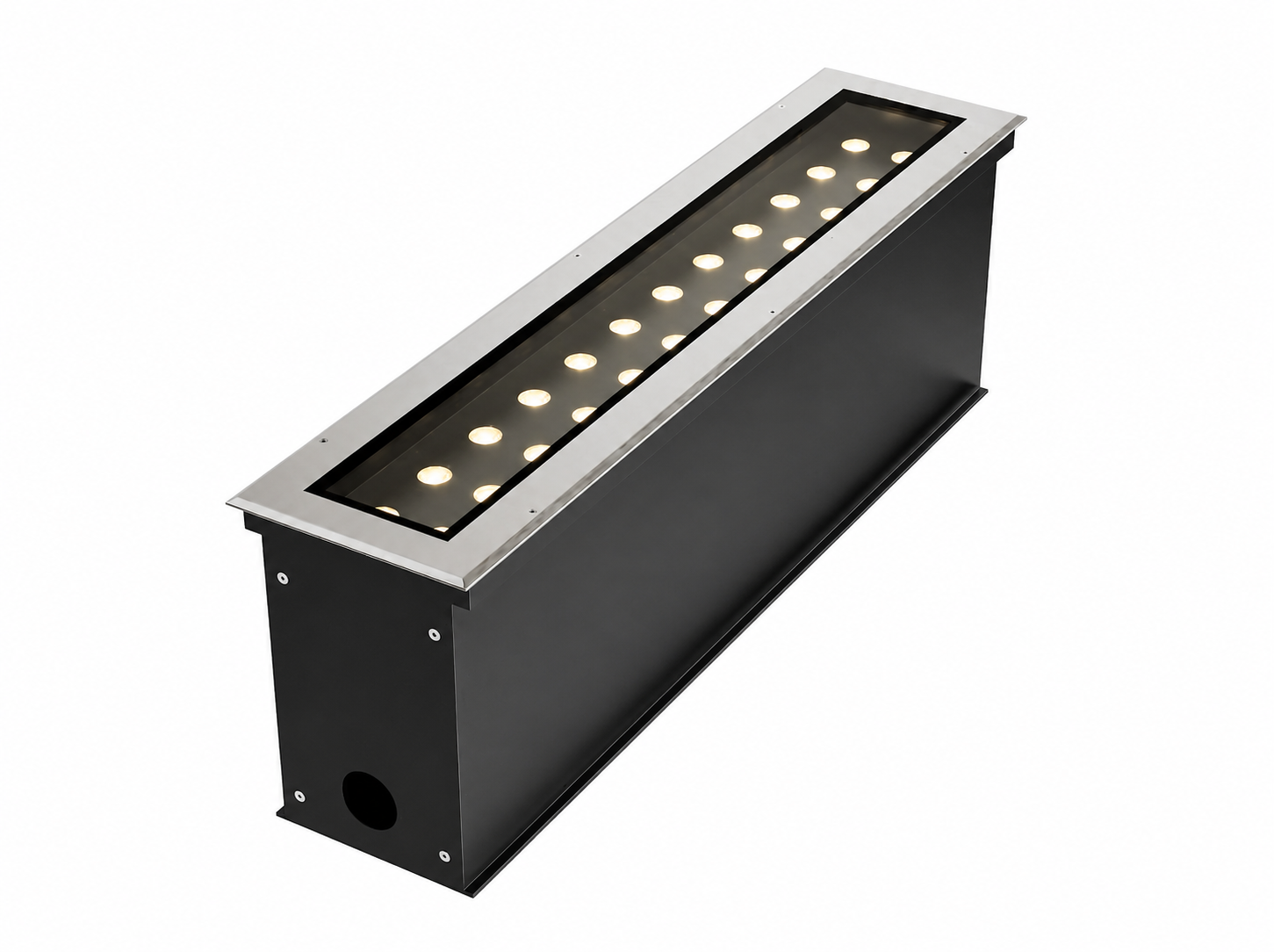

ZYRA 176 Linear 3000K DALI is a professional architectural recessed linear lighting system designed for indoor and outdoor applications requiring high-quality warm white illumination and robust mechanical performance.
Built with a premium 3000K LED system, the fixture delivers CRI >90 and SDCM <3 for excellent color consistency and visual comfort. Operating on 220VAC with built-in DALI control, it provides smooth dimming for professional architectural projects.
The fixture features a 20×65° optical distribution, 25 & 50W/m power consumption, and 2000 or 4000 lumen source output. Made from extruded aluminium with an AISI frame, it is adjustable ±15° and finished with anti-skid coating 9011.
With IP67 protection, IK10 impact resistance, UV resistance, included installation casing, and male/female 150 mm cables, ZYRA 176 is suitable for demanding indoor and outdoor installations. Produced in Italy, with 100,000h L80 B20 and operating temperature from -25°C to +55°C.
| Product Family | ZYRA 176 Linear 3000K DALI |
| CCT | 3000K |
| Control | DALI driver built-in |
| CRI | >90 |
| SDCM | <3 |
| Light Distribution | 20×65° |
| Wattage | 25W/m / 50W/m |
| Voltage | 220VAC DALI |
| IP Rating | IP67 |
| IK Rating | IK10 |
| Application | Recessed Mounted |
| Adjustability | ±15° |
| Material | Extruded aluminium with AISI frame |
| Finish | Anti-skid coating, finish 9011 |
| Dimension | 176 x 230 x 1000 mm |
| Visible Width | 176 mm |
| Outer Width | 230 mm |
| Cable | Male and female cable, 150 mm length, for easy loop connection |
| Accessories | Installation casing included |
| Other Accessories | Cable and external accessories not included |
| Operating Temperature | -25°C to +55°C |
| Fitting Life | 100,000h L80 B20 at Ta 25°C – Reported TM-21 L70 lifetime: >150,000 hours |
| Production | Produced in Italy |
| Working Temperature | -20°C ~ +55°C |
| Length | Optic | Wattage | CCT | Lumen Source | Control |
| 1000 mm | 20×65° | 25W/m | 3000K | 2000 lumen | DALI |
| 1000 mm | 20×65° | 50W/m | 3000K | 4000 lumen | DALI |
Code
L-CB1018 L=300 L-CB1019 L=1000 L-CB1020 L=5000
Code
L-CB1021 L=300 L-CB1022 L=1000 L-CB1023 L=5000
Code
L-CB1024 L=3000 L-CB1025 L=5000
