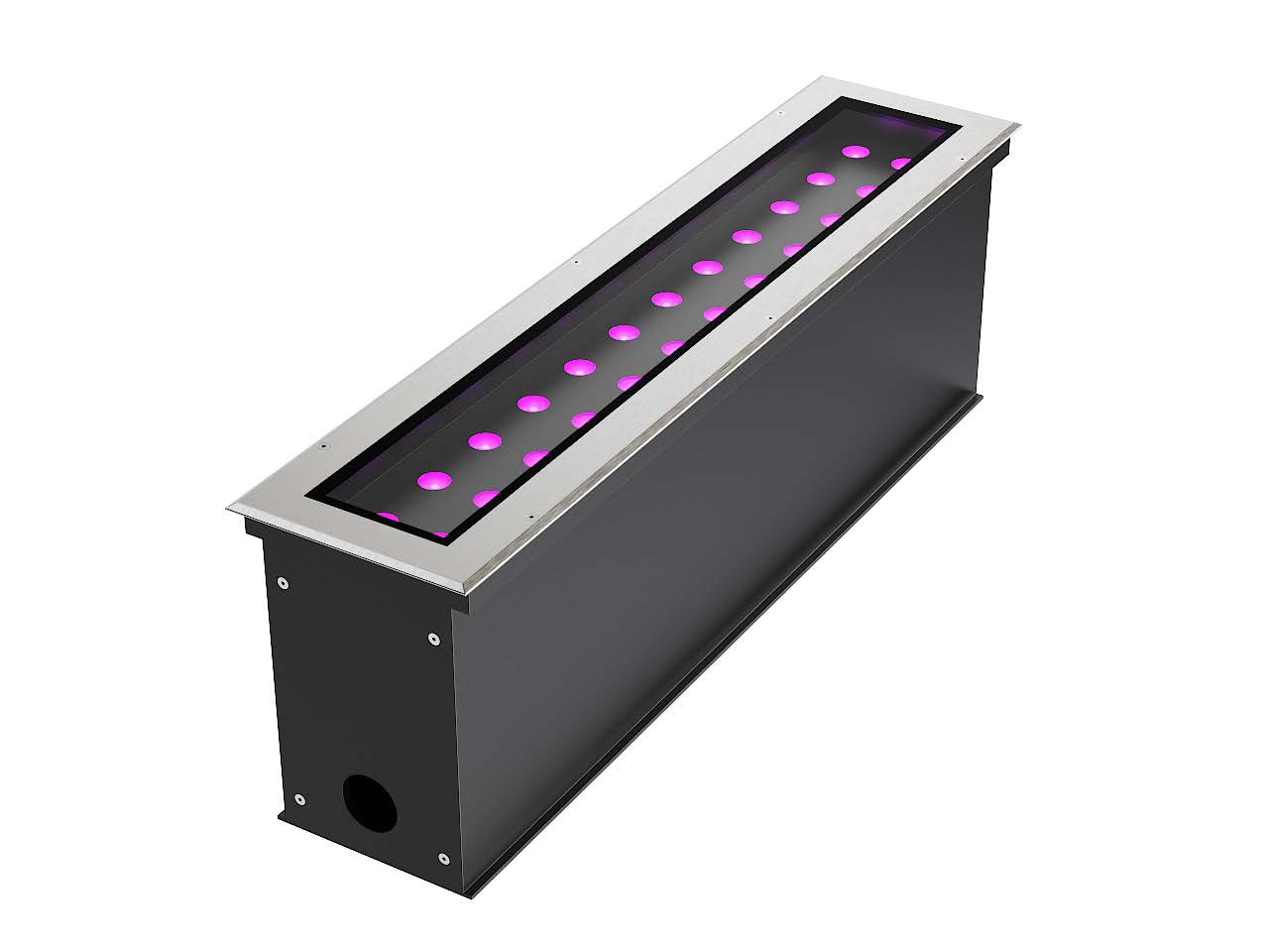

ZYRA 176 Linear RGBW is a professional architectural recessed linear lighting system designed for indoor and outdoor applications requiring dynamic RGBW color control, high-quality warm white illumination, and robust mechanical performance. Built with an RGBW 3000K LED system, the fixture delivers 1-2-4 pixels per meter, with a 250 mm pixel pitch, providing advanced lighting flexibility for façade, architectural, decorative, and ambient lighting applications.
Operating on 220VAC with integrated DMX/RDM control, ZYRA 176 is available with different optical distributions, including 20×35° and WallWasher. The RGBW system delivers up to 3000 lumen source output, with a dedicated white channel offering CRI >90 and SDCM <3 for premium visual consistency.
The fixture is made from extruded aluminium with an AISI frame, adjustable ±15°, and finished with anti-skid coating 9011. With IP67 protection, IK10 impact resistance, and UV resistance, it is suitable for demanding indoor and outdoor installations. Supplied with male and female 150 mm cables and installation casing included, ZYRA 176 is produced in Italy and designed for long service life.
| Product Family | ZYRA 176 Linear RGBW |
| CCT | RGBW 3000K |
| Control | Integrated DMX/RDM |
| Pixel Control | 1-4 pixels per meter, 250 mm pixel pitch |
| CRI | >90 |
| SDCM | <3 |
| Light Distribution | 20×35° / Wallwasher |
| Wattage | 50W/m for 20×35° version / 75W/m for Wallwasher version |
| Voltage | 220VAC |
| IP Rating | IP67 |
| IK Rating | IK10 |
| Application | Recessed Mounted |
| Adjustability | ±15° |
| Material | Extruded aluminium with AISI frame |
| Finish | Anti-skid coating, finish 9011 |
| Dimension | 176 x 230 x 1000 mm |
| Visible Width | 176 mm |
| Outer Width | 230 mm |
| Cable | Male and female cable, 150 mm length, for easy loop connection |
| Accessories | Installation casing included |
| Other Accessories | Cable and driver not included |
| Operating Temperature | -25°C to +55°C |
| Fitting Life | 100,000h L80 B20 at Ta 25°C – Reported TM-21 L70 lifetime: >150,000 hours |
| Production | Produced in Italy |
| Working Temperature | -20°C ~ +55°C |
| Length | Optic | Wattage | CCT | Lumen Source | Control |
| 1000 mm | 20×35° | 50W/m | RGBW 3000K | 1500 lumen | DMX/RDM |
| 1000 mm | Wallwasher | 75W/m | RGBW 3000K | 3000 lumen | DMX/RDM |
Code
L-CB1018 L=300 L-CB1019 L=1000 L-CB1020 L=5000
Code
L-CB1021 L=300 L-CB1022 L=1000 L-CB1023 L=5000
Code
L-CB1024 L=3000 L-CB1025 L=5000
