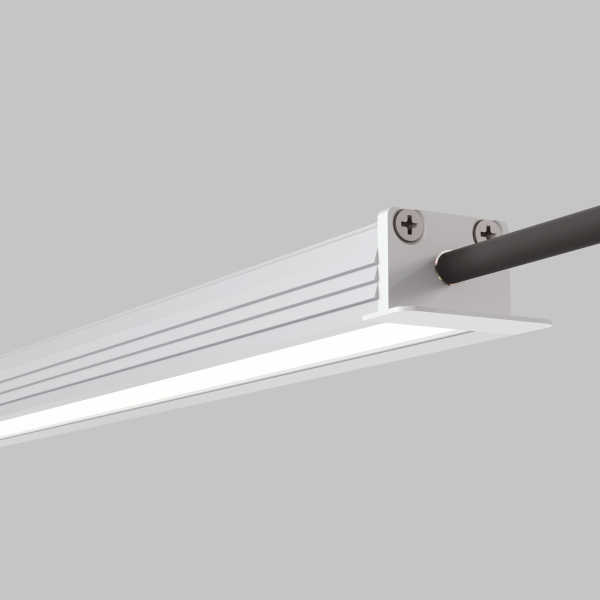

ZIN Linear Mono Asymmetric is a compact architectural linear lighting system designed for seamless integration into cabinetry, furniture, and detailed interior applications. Engineered with a refined extruded aluminium profile and a high-quality polycarbonate diffuser, it delivers soft, uniform illumination with excellent visual comfort and controlled light distribution.
Optimized for precision and consistency, ZIN features CRI ≥90 and single BIN LED selection (SDCM ≤3), ensuring accurate color rendering across installations. With an efficiency of up to 126 lm/W and IP44 protection, it is suitable for both residential and hospitality environments requiring durable and discreet lighting solutions. Available in multiple lengths and anodized aluminium finishes, ZIN offers flexibility for tailored architectural integration.
| Wattage | 10Watt/meter |
| CRI | ≥90 |
| SDCM | SDCM ≤3 |
| CCT | 2700K – 3000K – 4000K |
| Light distribution | Diffused PC |
| Efficiency | up to 126lm/W |
| IP | 44 |
| IK | 05 |
| Application | Recessed |
| Finish | Anodized Aluminum & Custom |
| Dimension | 12×20 – 620 – 920 – 1220mm |
| Clips | Included |
| Fitting | 50.000h |
| Length | Wattage | CRI | SDCM | 2700K | 3000K | 4000K |
| 645mm | 6 | 90 | ≤3 | 685 | 726 | 1370 |
| 961mm | 9 | 90 | ≤3 | 1089 | 1089 | 1452 |
| 1278mm | 12 | 90 | ≤3 | 1370 | 1140 | 1520 |
On/Off 60Watt
On/Off 75Watt
On/Off 100Watt
DALI 240Watt
