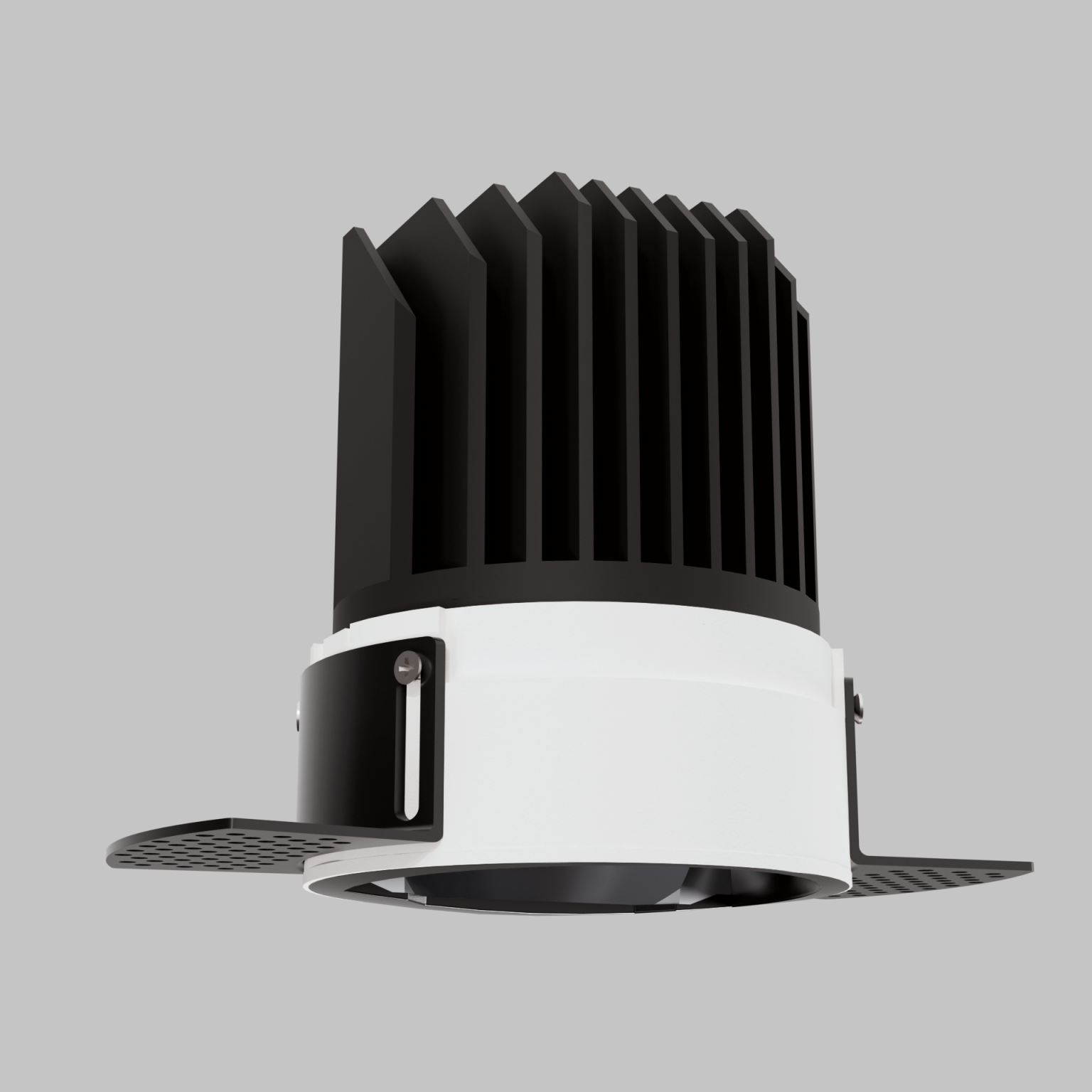

The VECTRA 17 TL is a high-performance trimless architectural LED downlight designed for indirect and wall-washing illumination. Built with a premium aluminium body and finished in elegant white powder coating with a black reflector, it delivers a refined aesthetic along with long-lasting durability. Powered by advanced LED technology, it ensures high efficiency, CRI90 color accuracy, and multiple CCT options (2700K, 3000K, 4000K) for versatile lighting applications.

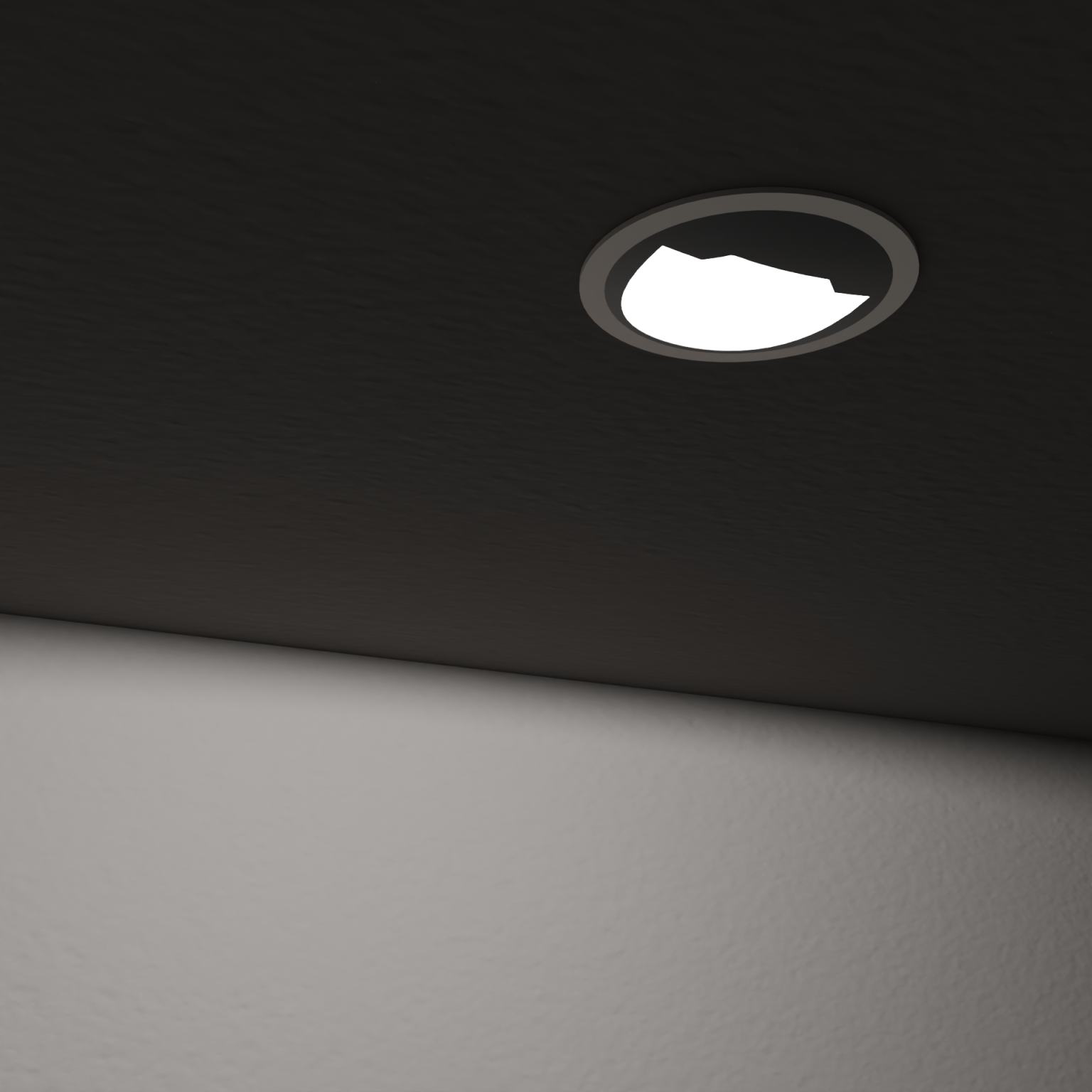

Featuring a precision-engineered asymmetric reflector, the VECTRA 17 TL provides soft, uniform wall-washing light without direct glare. Its indirect optical system enhances vertical surfaces, improving spatial perception and visual comfort. Designed for recessed trimless installation, it integrates seamlessly into modern interiors. With a lifespan exceeding 100,000 hours and IP20 protection, it is ideal for retail, hospitality, museums, and architectural lighting environments.
| Wattage | 17Watt |
| CRI | ≥90 |
| SDCM | SDCM ≤3 |
| Light distribution | Wall Washer – Asymmetric |
| Springs | Included |
| IP | 20 |
| Application | Recessed Trimless |
| Finish | Powder Coating RAL9016 |
| Dimension | D105 x H118 mm |
| Cut – Hole | 100mm |
| Fitting Life | 100.000h L80 B20 (Ta ,25°C) – Reported TM-21 L70 Lifetime: >100000 hours |
| CCT | CRI | SDCM | 17 Watt / Flux |
| 2700K | 90 | 3 | 2151 |
| 3000K | 90 | 3 | 2262 |
| 4000K | 90 | 3 | 2342 |
On/Off
DALI-2
