TAP 120 Wall Double

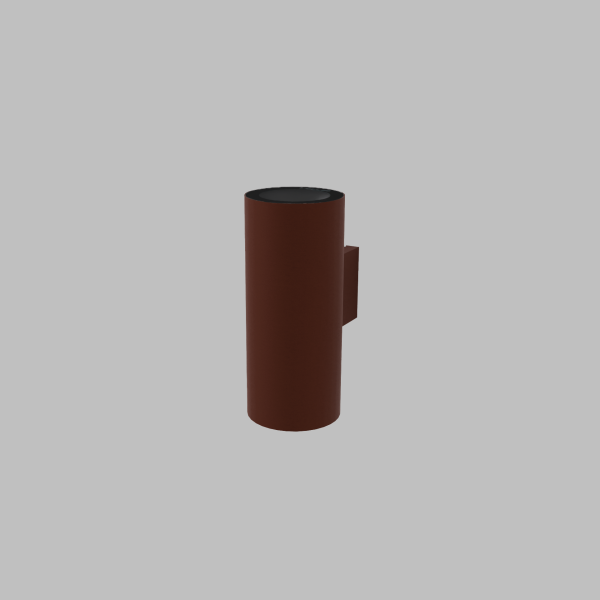

TAP 120 – Architectural Wall Double Ø120 12+12Watt

Feature:

Architectural Wall Double mounted for landscaping installation, made of durable CNC aluminium adapted for Outdoor applications, optic made of polycarbonate (PC) UV resistance, available in 4 different beam angles, powder coating finish White, Grey, Black and Corten.

LED mono-colour, optics light effect, high-performance LEDs with CRI>90, 12+12Watt with SDCM<3 (One Bin Only), lumen and available CCT as reported below.

Protection IP67, Operating ambient temperature -20°C / +55°C

Triac Built-In 240Volt

Designed and Produced in Italy

Specification Product

Wattage	12+12Watt
CRI	≥90
SDCM	SDCM<3
Light distribution	19° – 24° – 34° – 45°
IP	67

Technical Data

Application	Surface Ceiling
Finish	Powder Coating
Dimension	Dia 120 x H280 mm
Input	240Volt Built-in Driver Triac
Fitting Life	100.000h L80 B20 (Ta ,55°C) – Reported TM-21 L70 Lifetime: >100000 hours

PRODUCT SELECTION

1 Step 1

FormCraft - WordPress form builder

CCT - LUMEN - CRI - SDCM

CCT	CRI	SDCM	12+12 Watt / FLUX	Delivered Lumen
2700K	90+	<3	1573 + 1573	1337 + 1337
3000K	90+	<3	1654 + 1654	1406 + 1406
4000K	90+	<3	1710 + 1710	1453 + 1453
