STRIP OUT MONO High Efficiency

STRIP OUT MONO High Efficiency

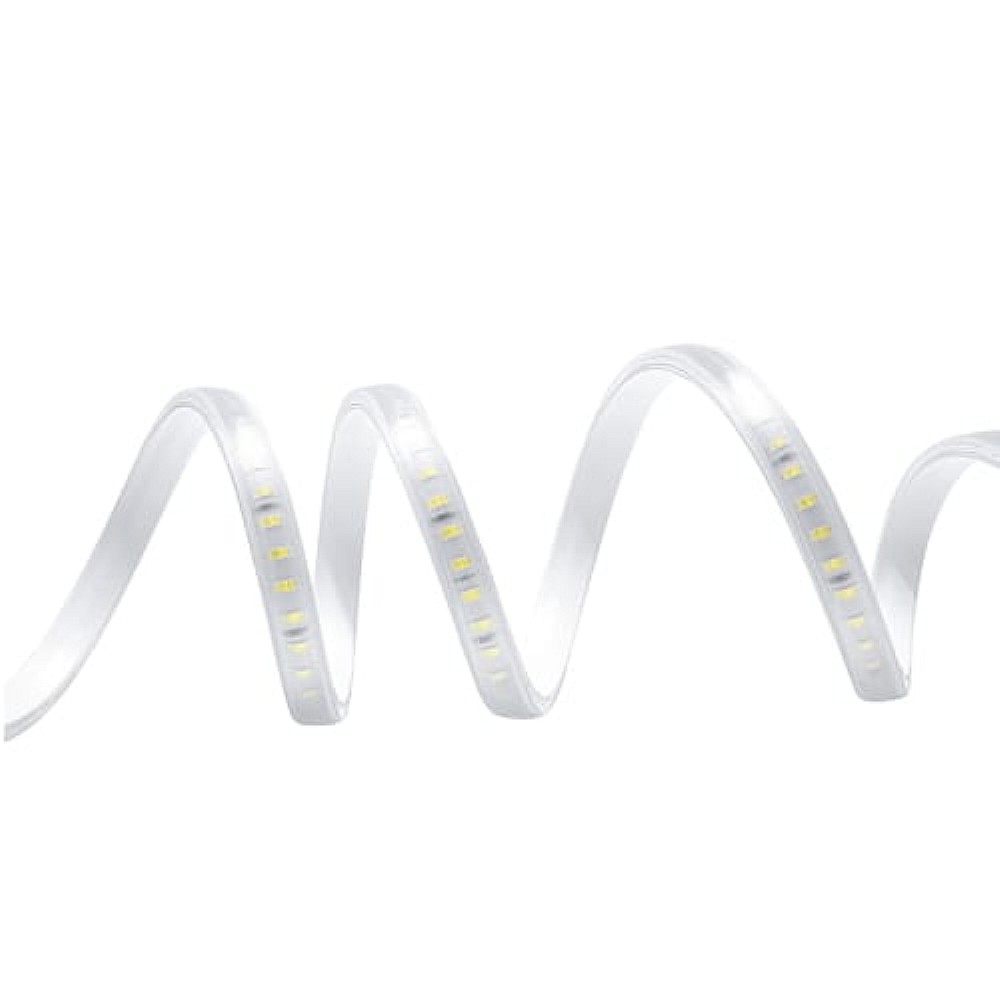

STRIP OUT MONO High Efficiency is a professional-grade 24V DC LED strip engineered for high-performance architectural and outdoor lighting applications. Designed with premium 2835 SMD LEDs and a thick 2oz copper PCB, it delivers exceptional thermal management, stable performance, and superior luminous efficiency up to 135lm/W. With CRI ≥90 color rendering, consistent 3 SDCM BIN selection, and fully dimmable operation, this flexible IP67-rated strip ensures precise, reliable illumination across demanding indoor and outdoor installations.

Specification Product

Voltage 24V DC
Wattage 15W/m
CRI ≥90
LEDs per Meter 192
Efficiency Up to 135lm/W
IP 67

Technical Data

Application Outdoor / Wet location
Mounting Surface / Profile
Fitting Life 100.000h L80 B20 (Ta,25°C) – Reported TM-21 L70

Key Features

High Efficiency Performance

Delivers up to 135lm/W for powerful illumination with optimized energy efficiency.

Superior Color Consistency

Single BIN LED selection withSDCM ≤3 tolerance ensures uniform light appearance across installations.

Professional Outdoor Protection

IP67 protection makes the strip suitable for humid and outdoor architectural environments.

Advanced Thermal Management

Built with a thick 2oz copper PCB for enhanced heat dissipation and long-term reliability.

Technical Downloads

Download In Your Own Language

English
Spanish
Italian
French

Download In Your Own Language

English
Spanish
Italian
French

Download In Your Own Language

English
Spanish
Italian
French

Download In Your Own Language

English
Spanish
Italian
French

Download In Your Own Language

English
Spanish
Italian
French

View Accessories

accessories

Technical Downloads

Download
Download
Download
Download
Download

View Accessories

accessories
CRI ≥90 High Color Rendering
Up to 135lm/W Efficiency
24V DC Input
Fully Dimmable
192 LEDs/m Density
IP67 Outdoor Protection
42mm Cut Size
3M Adhesive Backing

Technical Features

Multiple CCT
Options

High Efficiency
lm/W

3M Adhesive
Backing

Single BIN
LED (SDCM ≤3)

Thick Copper
PCB

IP67 Outdoor
Protection

Product Selection

Step 1: CCT Initial Code
Step 2: CCT Code
Step 3: Optic Code
Step 4: Effect
Step 5: IP Rating
Order Code
—

Accessories

ACCESSORIES

L-AL004.C

L-AL004.C

L-AL004.M

L-AL014.C

L-AL014.C

L-AL014.M

L-AL012.C

L-AL012.C

L-AL012.M

L-AL015.C

L-AL015.C

L-AL015.M

D014

D014

On/Off IP20 75Watt

D016

D016

On/Off IP20 150Watt

D001

D001

On/Off IP67 75Watt

D004

D004

On/Off IP67 150Watt
