PLAF75

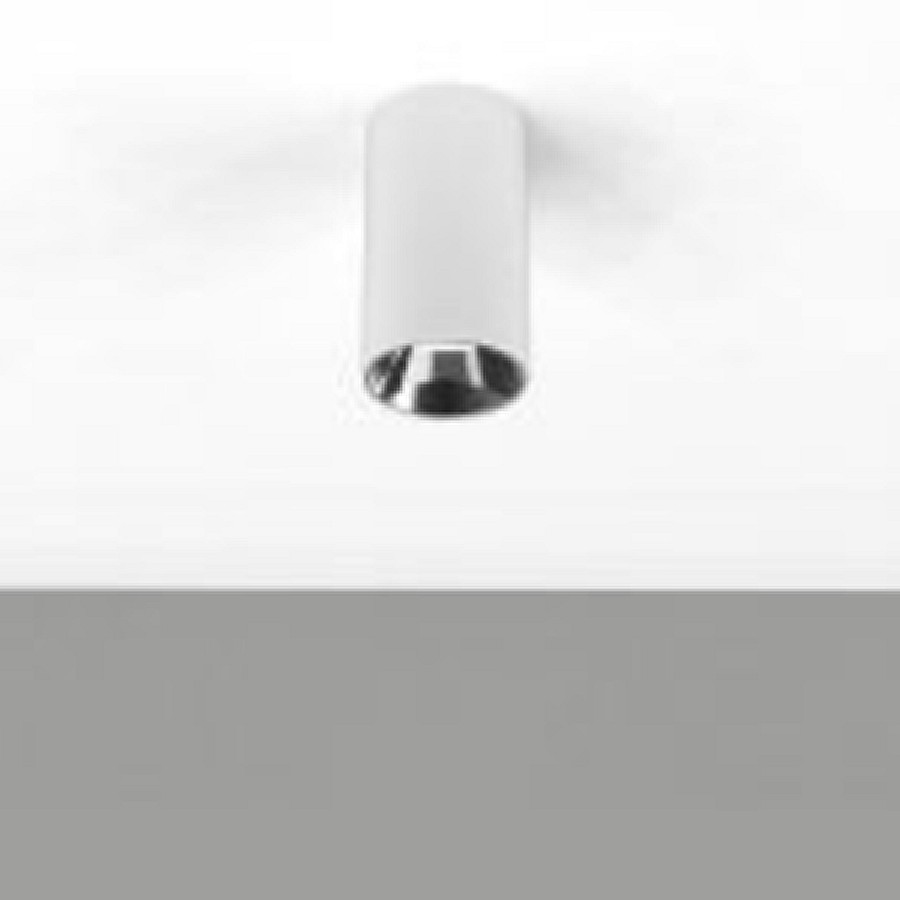

PLAF75 is a high-performance architectural surface-mounted downlight Ø75 designed to provide powerful and refined illumination for indoor environments. Constructed from durable aluminium, it combines a robust structure with a clean, modern aesthetic, making it suitable for a wide range of architectural applications where surface installation is required.

Available in white, black, and grey powder-coated finishes, PLAF75 also features interchangeable reflector options in multiple colors, allowing both visual and lighting customization. With direct 220V AC input, high color rendering, and controlled beam distributions, it is ideal for retail, hospitality, and residential spaces requiring efficient and visually appealing lighting solutions.

Specification Product

Wattage 9Watt
CRI ≥90
SDCM SDCM ≤3
Light distribution 19° – 24° – 36°
Converter Direct 220V AC
IP 40

Technical Data

Application Surface
Finish Powder Coating
Dimension D75 x H170 mm
Fitting Life L90 100.000h; L70B20 (Ta,55°C) Lifetime: >54000h of LM-80

CCT – LUMEN(DELIVERED) – CRI – SDCM

← Scroll to see more →
CCT CRI SDCM 9 Watt / Flux Delivered Lumen
2700K 90 3 1116 949
3000K 90 3 1187 1009
4000K 90 3 1259 1070

Key Features

Enhanced Surface-Mounted Design

PLAF75 features a Ø75 form factor, delivering higher light output while maintaining a sleek and architectural appearance.

Customizable Reflector System

Multiple reflector finishes allow designers to create distinct visual effects and tailor lighting to interior concepts.

Precise Optical Distribution

A selection of beam angles ensures flexibility for both focused accent lighting and broader illumination.

Direct Power Operation

Operates on direct 220V AC, simplifying installation by removing the need for an external driver.

Technical Downloads

Download In Your Own Language

Download In Your Own Language

Download In Your Own Language

Download In Your Own Language

Download In Your Own Language

View Accessories

Technical Downloads

View Accessories

Ø75 surface-mounted downlight
9W high-efficiency LED
CRI ≥90
SDCM ≤3 color consistency
Reflector finishes: White / Black / Grey / Amber
IP40 indoor rating
Direct 220V AC input
Long lifetime up to 100,000h

Technical Features

Multiple CCT
Options

High Efficiency
lm/W

3M Adhesive
Backing

Single BIN
LED (SDCM ≤3)

Thick Copper
PCB

IP67 Outdoor
Protection
