PLAF75 DALI

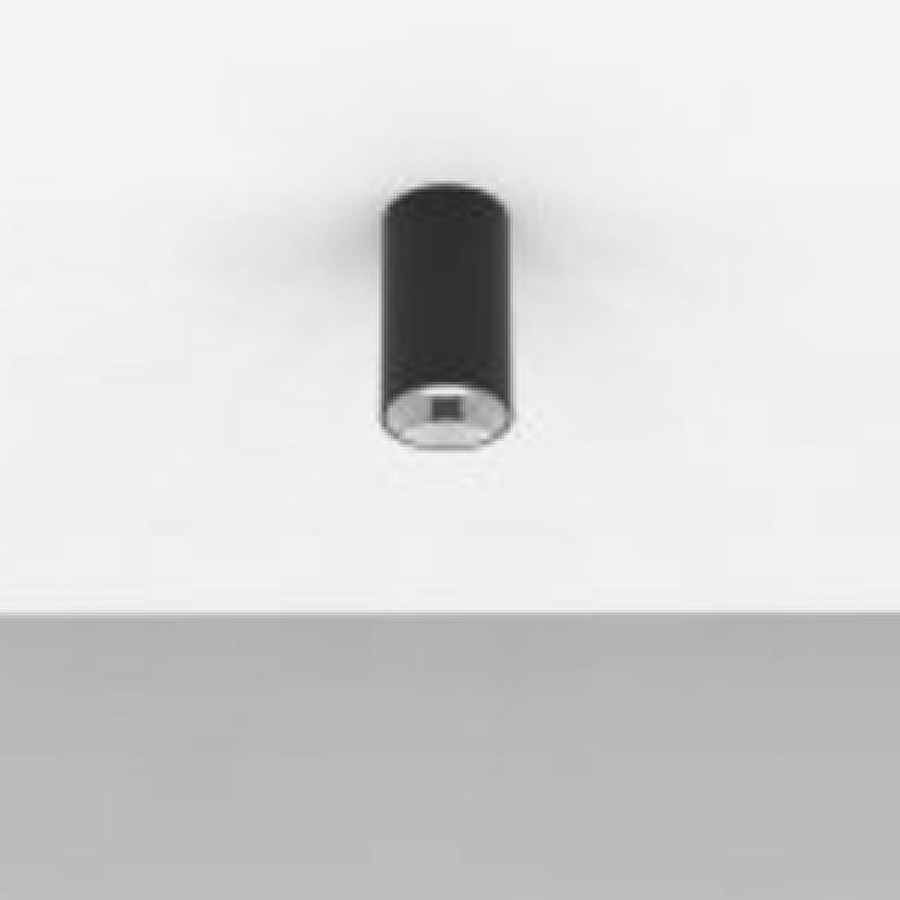

PLAF75 DALI is a surface-mounted architectural downlight designed for high-performance indoor lighting applications. Constructed from durable aluminium, it combines a compact cylindrical design with advanced LED technology to deliver efficient and controlled illumination. Available in white, black, and grey powder-coated finishes, it offers aesthetic flexibility for modern architectural spaces.

Equipped with DALI-compatible direct 220V AC control, PLAF75 DALI ensures precise dimming and intelligent lighting integration. Its reflector system, available in multiple beam angles and color finishes, allows tailored light distribution for different design requirements. With high color rendering (CRI ≥90), stable color consistency (SDCM ≤3), and long lifetime performance, it is ideal for retail, hospitality, and architectural environments.

Specification Product

Wattage 9Watt
CRI ≥90
SDCM SDCM ≤3
Light distribution 19° – 24° – 36°
Converter Direct 220V AC DALI
IP 40

Technical Data

Application Surface
Finish Powder Coating
Dimension D75 x H170 mm
Fitting Life L90 100.000h; L70B20 (Ta,55°C) Lifetime: >54000h of LM-80

CCT – LUMEN(DELIVERED) – CRI – SDCM

← Scroll to see more →
CCT CRI SDCM 9 Watt / Flux Delivered Lumen
2700K 90 3 1116 949
3000K 90 3 1187 1009
4000K 90 3 1259 1070

Key Features

DALI Intelligent Control System

Integrated DALI driver enables smooth dimming and advanced lighting control for smart building applications.

Compact Surface-Mounted Design

Ø75mm cylindrical form factor ensures a minimal and refined architectural presence on ceilings.

Flexible Optical System

Multiple beam angles (19°–36°) and reflector finishes allow precise control of lighting effects.

High Performance LED Technology

Delivers efficient output with CRI ≥90 and consistent color quality for professional environments.

Technical Downloads

Download In Your Own Language

Download In Your Own Language

Download In Your Own Language

Download In Your Own Language

Download In Your Own Language

View Accessories

Technical Downloads

View Accessories

Surface-mounted architectural downlight
Ø75mm compact design
9W LED system
CRI ≥90 high color rendering
Beam angles: 19° / 24° / 36°
Reflector options: White / Black / Grey / Amber
IP40 indoor rating
Lifetime up to 100,000h (L90)

Technical Features

Multiple CCT
Options

High Efficiency
lm/W

3M Adhesive
Backing

Single BIN
LED (SDCM ≤3)

Thick Copper
PCB

IP67 Outdoor
Protection
