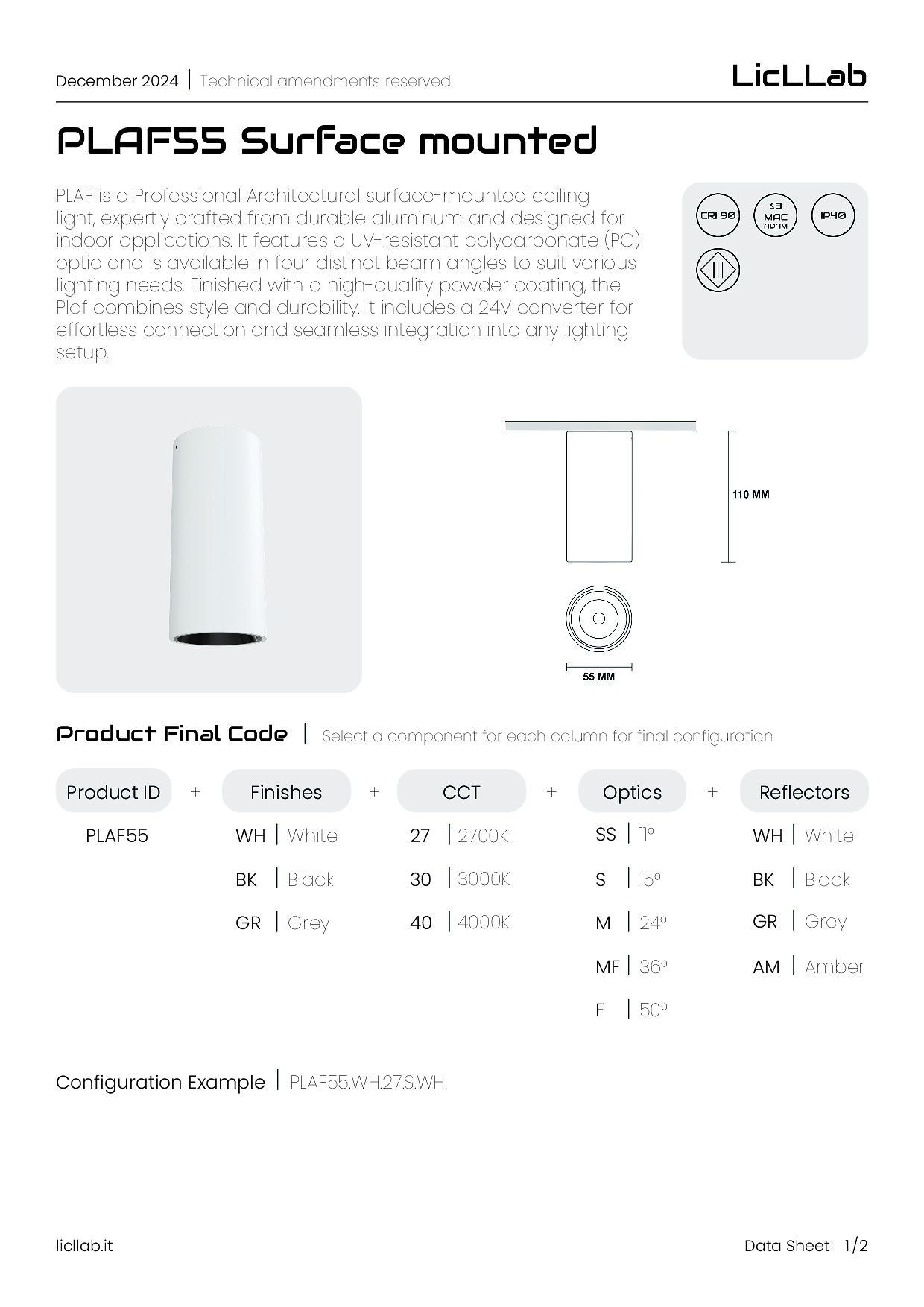

PLAF55

PLAF55 is a compact architectural surface-mounted downlight Ø55 designed to deliver efficient and refined lighting for modern indoor environments. Built from high-quality aluminium, it offers durability combined with a clean and minimal aesthetic, making it ideal for contemporary ceiling applications where recessed installation is not feasible.

Available in white, black, and grey powder-coated finishes, PLAF55 also features interchangeable reflector options in multiple colors to enhance both visual appeal and lighting performance. With direct 220V input, high color rendering, and controlled beam distributions, it provides a practical and flexible solution for residential, retail, and hospitality lighting projects.

Specification Product

Wattage 6Watt
CRI ≥90
SDCM SDCM ≤3
Light distribution 18° – 24° – 34°
Converter Direct 220V AC
IP 40

Technical Data

Application Surface
Finish Powder Coating
Dimension D55 x H110 mm
Fitting Life L90 100.000h; L70B20 (Ta,55°C) Lifetime: >54000h of LM-80

CCT – LUMEN(DELIVERED) – CRI – SDCM

← Scroll to see more →
CCT CRI SDCM 6 Watt / Flux Delivered Lumen
2700K 90 3 805 685
3000K 90 3 856 728
4000K 90 3 908 772

Key Features

Compact Surface-Mounted Design

PLAF55 features a Ø55 form factor, providing a balance between compact size and enhanced light output for surface installations.

Customizable Reflector Options

Multiple reflector finishes allow designers to tailor the visual appearance and lighting effect to suit different interior styles.

Efficient Optical Control

A range of beam angles ensures precise light distribution for both accent and general lighting applications.

Direct Power Input

Operates on direct 220V AC, simplifying installation by eliminating the need for an external driver.

Technical Downloads

Download In Your Own Language

Download In Your Own Language

Download In Your Own Language

Download In Your Own Language

Download In Your Own Language

View Accessories

Technical Downloads

View Accessories

Ø55 surface-mounted downlight
6W high-efficiency LED
CRI ≥90
SDCM ≤3 color consistency
Beam angles: 18° / 24° / 34°
Reflector finishes: White / Black / Grey / Amber
Direct 220V AC input (no external driver)
Long lifetime up to 100,000h

Technical Features

Multiple CCT
Options

High Efficiency
lm/W

3M Adhesive
Backing

Single BIN
LED (SDCM ≤3)

Thick Copper
PCB

IP67 Outdoor
Protection
