PLAF42 - LICLLAB | Light Is Culture

PLAF42

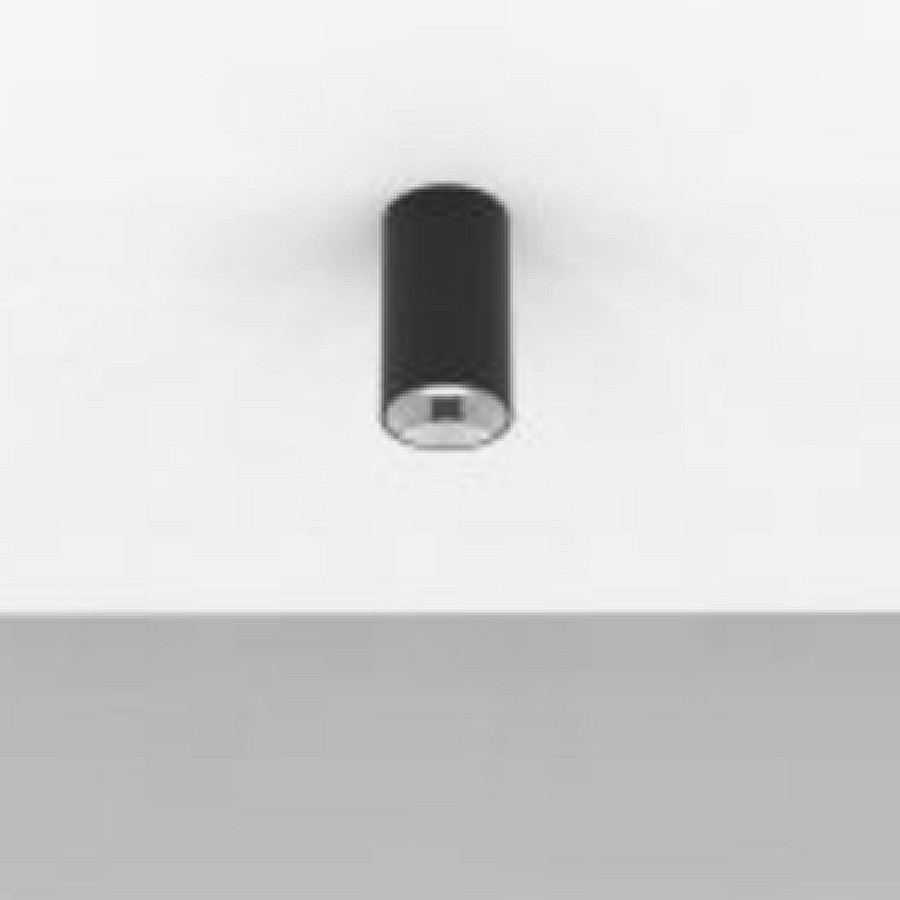

PLAF42 – Architectural Surface Mounted downlight Ø 42

Feature:

Surface LED ceiling-mounted, made of aluminium adapt for Indoor applications, compact design offering ultimate LED technology, available in white, black and grey finish powder coating. Included reflectors available in 4 different colors.

PRODUCT SELECTION

Specification Product

Wattage 4Watt
CRI ≥90
SDCM SDCM 3
Light distribution 19° – 24° – 37°
Converter Included 24V
IP 40

Technical Data

Application Surface
Finish Powder Coating
Dimension D42 x H84 mm
Fitting Life L90 100.000h; L70B20 (Ta,55°C) Lifetime: >54000h of LM-80

PRODUCT SELECTION

1 Step 1
1: CCT Initial Code
2: CCT Code
3: Optic CODE
4: Reflector finish

ORDER CODE: ​[field1].[field3].[field4].[field5]


keyboard_arrow_leftPrevious
Nextkeyboard_arrow_right
FormCraft - WordPress form builder

CCT - LUMEN(DELIVERED) - CRI - SDCM

CCT CRI SDCM 4 Watt / Flux Delivered Lumen
2700K 90 3 499 440
3000K 90 3 521 458
4000K 90 3 558 491


ACCESSORIES

D034

On/Off Max 2

D037

On/Off Max 4

D024

DALI Max 15
