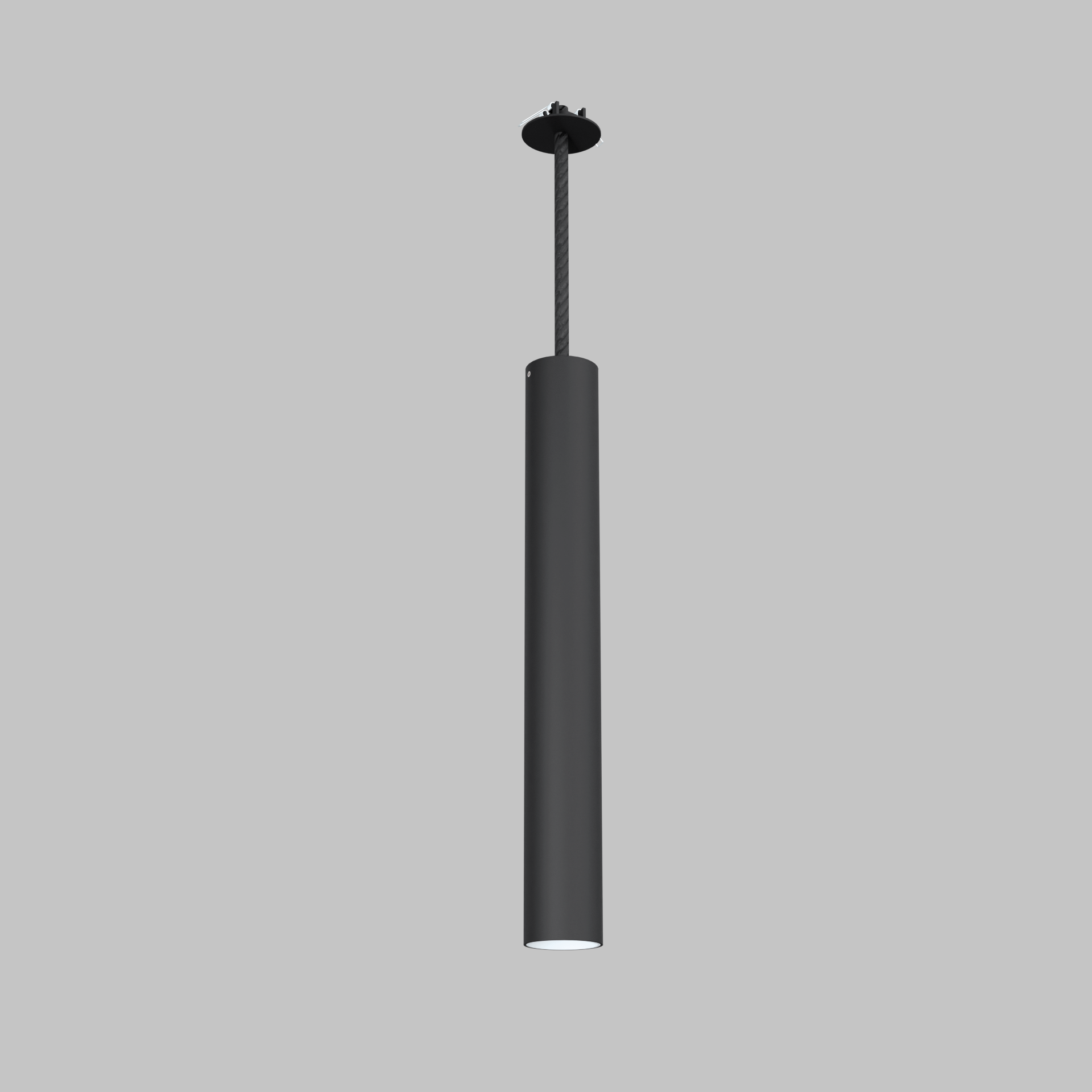

PLAF32R

PLAF32R is a compact architectural suspended downlight designed for precise accent lighting in refined interior environments. With its ultra-slim Ø32 mm cylindrical form, it offers a minimal visual footprint while delivering focused and controlled illumination, making it ideal for applications requiring subtle yet effective lighting.

Manufactured from high-quality aluminium and available in multiple finishes with interchangeable reflector options, PLAF32R provides excellent design flexibility. Its high-performance LED module ensures CRI ≥90 and stable color consistency (SDCM ≤3), while a wide range of beam angles allows tailored lighting effects from narrow accent to wider ambient illumination. Designed with a recessed mounted base, PLAF32R is perfectly suited for retail, hospitality, and high-end residential applications.

Specification Product

Wattage 3Watt
CRI ≥90
SDCM SDCM ≤3
Light distribution 15° – 25° – 38°- 60°
Power 220V AC
IP 40

Technical Data

Application Suspended
Finish Powder Coating
Dimension D32 x H250 mm
Fitting Life L90 100.000h; L70B20 (Ta,55°C) Lifetime: >54000h of LM-80

CCT – LUMEN(DELIVERED) – CRI – SDCM

← Scroll to see more →
CCT CRI SDCM 3 Watt / Flux Delivered Lumen
2700K 90 3 351 299
3000K 90 3 351 299
4000K 90 3 357 316

Key Features

Ultra-Compact Suspended Design

Ø32 mm slim cylindrical form enables discreet integration into sophisticated interior spaces.

Wide Beam Flexibility

Multiple beam options (15°, 25°, 38°, 60°) allow precise control from accent to ambient lighting.

Customizable Finishes & Reflectors

Available in various body finishes with interchangeable reflector colors for design versatility.

High-Quality Light Output

CRI ≥90 with SDCM ≤3 ensures accurate color rendering and consistent performance.

Technical Downloads

Download In Your Own Language

Download In Your Own Language

Download In Your Own Language

Download In Your Own Language

Download In Your Own Language

View Accessories

Technical Downloads

View Accessories

3W LED Output
Beam Angles: 15° / 25° / 38° / 60°
CRI ≥90 High Color Rendering
SDCM ≤3 Color Consistency
Ø32 mm Ultra-Compact Design
Suspended Recessed Mount
Reflector Color Options
IP40 Indoor Rated

Technical Features

Multiple CCT
Options

High Efficiency
lm/W

3M Adhesive
Backing

Single BIN
LED (SDCM ≤3)

Thick Copper
PCB

IP67 Outdoor
Protection

Product Selection

Order Code

Accessories
