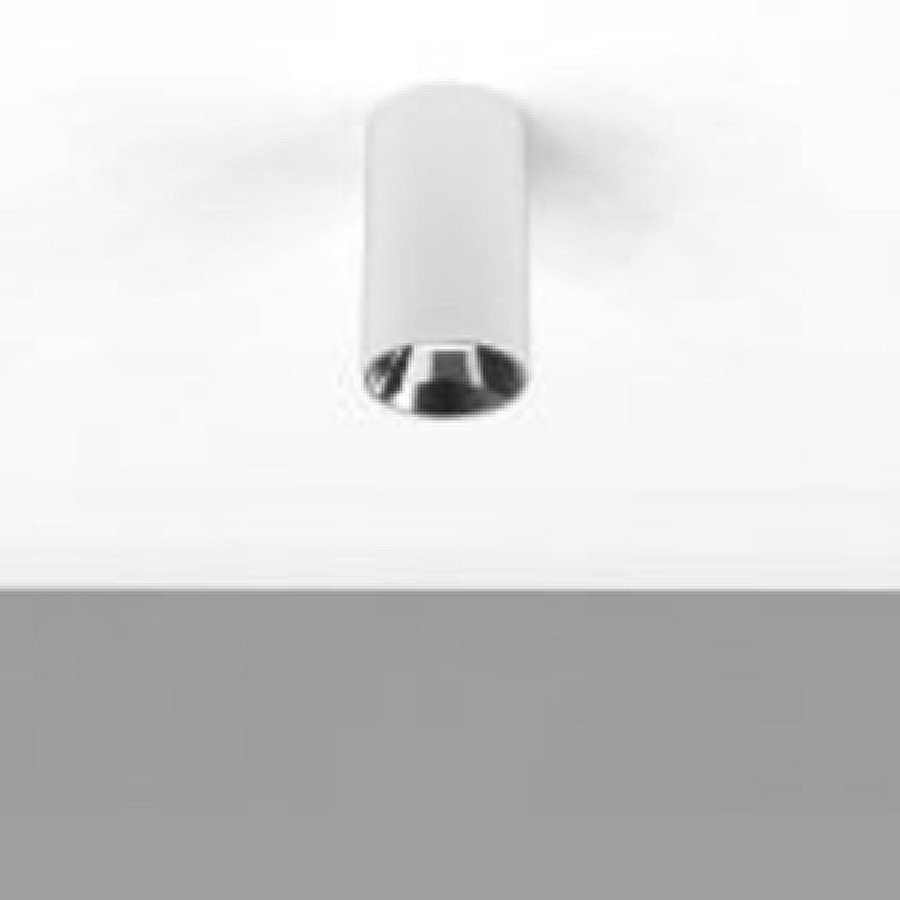

PLAF32 – Architectural Surface Mounted downlight Ø 32
Surface LED ceiling-mounted, made of aluminium adapt for Indoor applications, compact design offering ultimate LED technology, available in white, black and grey finish powder coating. Included reflectors available in 4 different colors.
| Wattage | 2Watt |
| CRI | ≥90 |
| SDCM | SDCM 3 |
| Light distribution | 15° – 25° – 38°- 60° |
| Converter | Included 24V |
| IP | 40 |
| Application | Surface |
| Finish | Powder Coating |
| Dimension | D32 x H70 mm |
| Fitting Life | L90 100.000h; L70B20 (Ta,55°C) Lifetime: >54000h of LM-80 |
| CCT | CRI | SDCM | 2 Watt / Flux | Delivered Lumen |
| 2700K | 90 | 3 | 234 | 199 |
| 3000K | 90 | 3 | 234 | 199 |
| 4000K | 90 | 3 | 238 | 211 |
On/Off Max 4
On/Off Max 9
DALI Max 30
