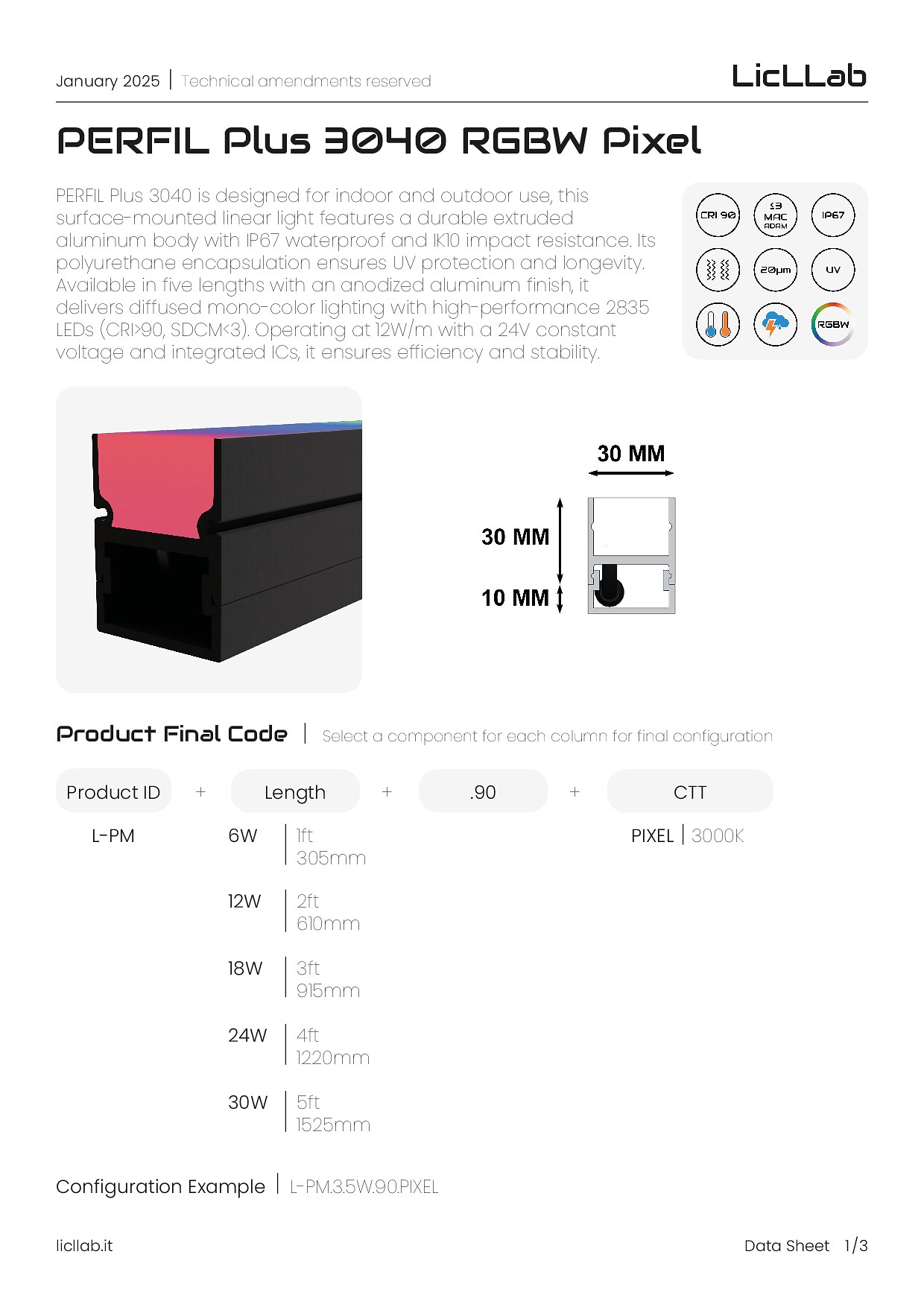

Perfil Plus 3040 Pixel is a professional architectural linear lighting system designed for dynamic outdoor applications. Featuring RGBW pixel technology (with 3000K white), it enables advanced lighting effects, color-changing scenes, and programmable animations, making it ideal for façades, media lighting, and creative installations.
Constructed from extruded aluminium with a durable grey powder-coated finish, and fully encapsulated in polyurethane, it offers excellent waterproofing and UV resistance. With IP67 protection and high-quality SMD LEDs, this fixture ensures long-lasting performance in harsh environments. Operating on 24V DC (48V optional), it delivers reliable and efficient lighting for demanding architectural projects.
| Wattage | 25Watt/meter – 24Volt |
| CRI | ≥90 |
| SDCM | ≤3 |
| CCT | Pixel / Addressable RGBW |
| Light distribution | Diffused |
| Efficiency | up to 135lm/W |
| IP | 67 |
| IK | 10 |
| Application | Surface mounted |
| Finish | Dark Grey Powder Coating |
| Dimension | 30 x 40 mm x length / custom |
| Brackets | Included |
| Operating Temperature | -20°C / +55°C |
| Fitting Life | 53.000h L80 B20 (Ta,25°C) – Reported TM-21 L70 |
| Length | Wattage | LED Pixel |
| 1 ft / 305mm | 6 | RGBW |
| 2 ft / 610mm | 12 | RGBW |
| 3 ft / 905mm | 18 | RGBW |
| 4 ft / 1205mm | 24 | RGBW |
| 5 ft / 1505mm | 30 | RGBW |
L-CB101 L= 300 L-CB102 L= 1000 L-CB103 L= 5000
Code
L-CB104 L= 300 L-CB105 L= 1000 L-CB106 L= 5000
Code
L-CB107 L= 3000 L-CB108 L= 5000
