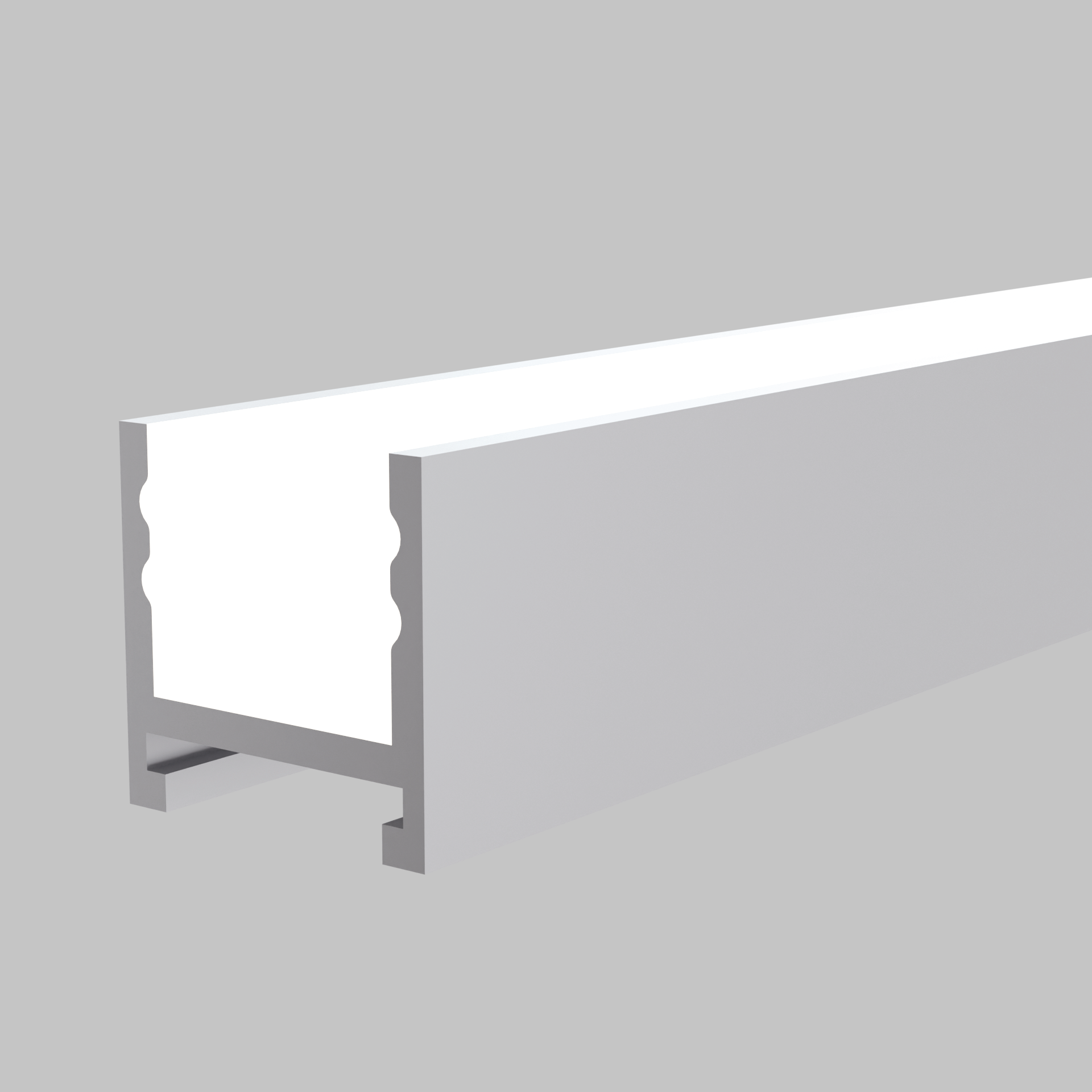

Perfil Plus 20 is a compact professional architectural linear lighting system designed for indoor and outdoor applications requiring efficient, uniform, and high-quality illumination in a slim profile. Built with 180 LEDs per meter using advanced SMD technology, it delivers smooth diffused light output with excellent consistency and visual comfort.
Operating on a 24V DC system, it offers a wide CCT range from 1800K to 5000K, enabling flexible lighting design from warm ambient tones to cool daylight white. With CRI ≥90, SDCM <3 color consistency, IP67 protection, and polyurethane encapsulation, it ensures reliable performance in both indoor and outdoor environments.
| Wattage | 12Watt/meter – 24Volt |
| CRI | ≥90 |
| SDCM | ≤3 |
| CCT | 1800K – 2200K – 2700K – 3000K – 4000K – 5000K |
| Light distribution | Diffused |
| Efficiency | up to 135lm/W |
| IP | 67 |
| IK | 10 |
| Application | Surface mounted |
| Finish | Anodized Aluminium |
| Dimension | 20 x 20 mm x length / custom |
| Brackets | Included |
| Operating Temperature | -20°C / +50°C |
| Fitting Life | 53.000h L80 B20 (Ta,25°C) – Reported TM-21 L70 |
| Working Temperature | -20°C ~ +55°C |
| Length | Wattage 12W/m | 1800K | 2200K | 2700K | 3000K | 4000K | 5000K |
| 1 ft / 305mm | 3.5 | 355 | 362 | 387 | 418 | 448 | 463 |
| 2 ft / 610mm | 7 | 709 | 724 | 773 | 836 | 895 | 926 |
| 3 ft / 915mm | 10.5 | 1064 | 1086 | 1160 | 1253 | 1343 | 1389 |
| 4 ft / 1220mm | 14 | 1419 | 1448 | 1546 | 1671 | 1790 | 1852 |
| 5 ft / 1525mm | 17.5 | 1773 | 1810 | 1933 | 2089 | 2238 | 2315 |
L-CB101 L=300 L-CB102 L=1000 L-CB103 L=5000
L-CB104 L=300 L-CB105 L=1000 L-CB106 L=5000
L-CB107 L=3000 L-CB108 L=5000
On/Off IP67 75Watt
