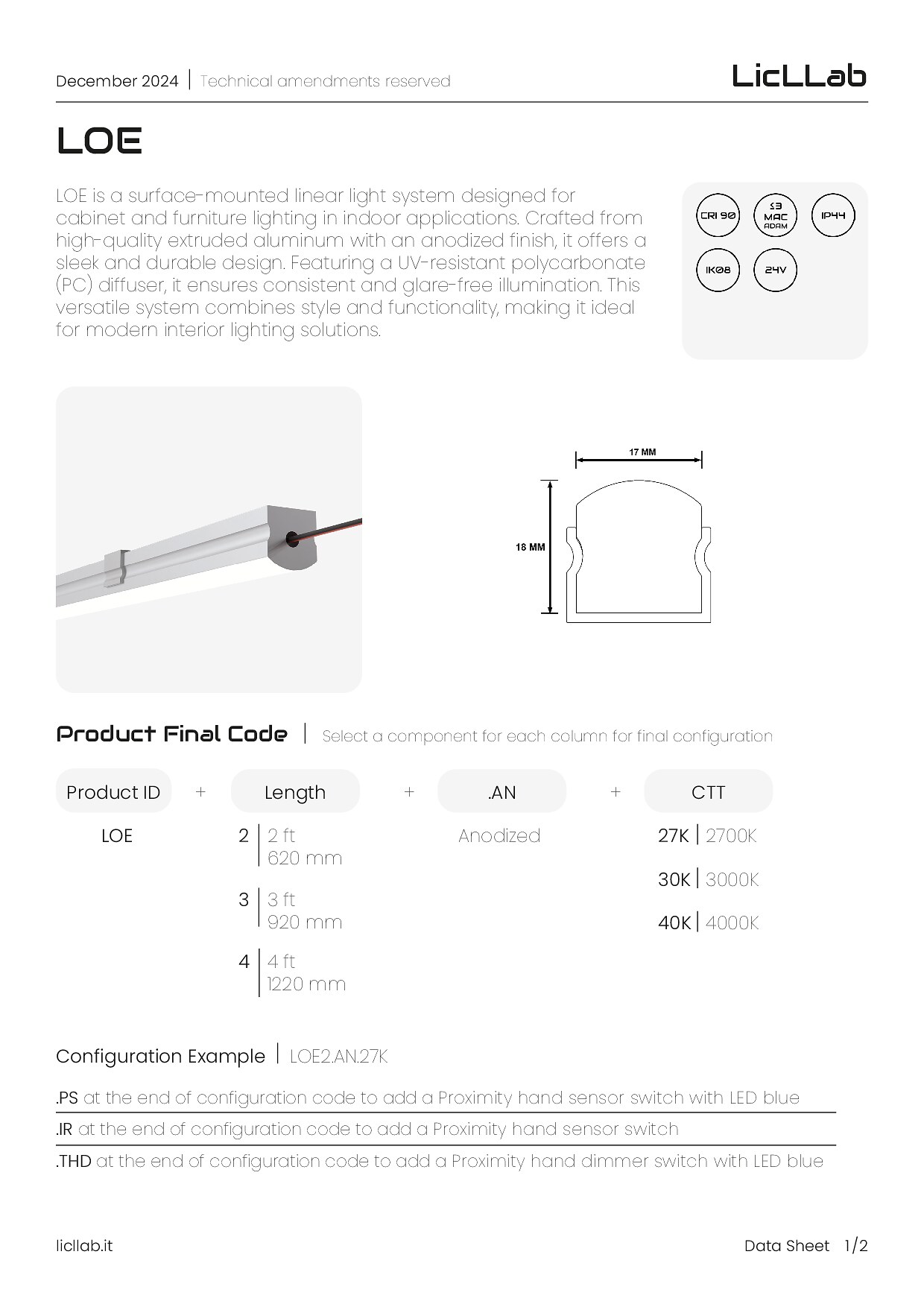

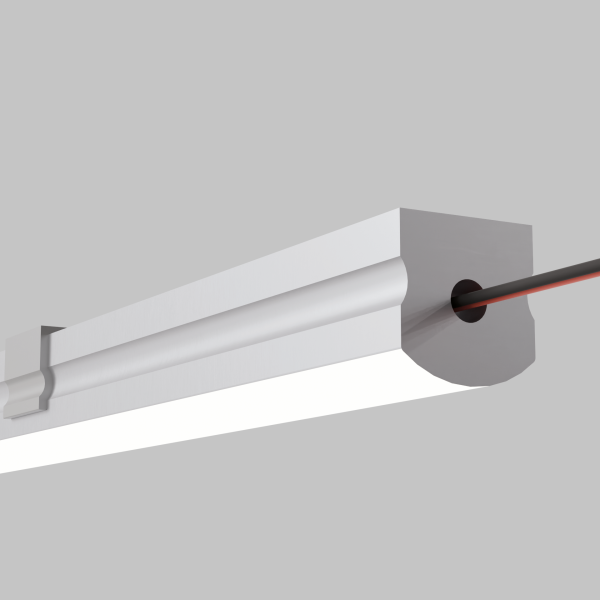

LOE Linear Mono is a compact and versatile linear lighting system designed for cabinet, furniture, and corner profile applications. Operating at 24V with 10W per meter, it delivers efficient and uniform illumination through a diffused polycarbonate optic, ensuring soft, glare-free lighting ideal for indoor environments.
Constructed from extruded anodized aluminium, LOE combines durability with a clean architectural appearance. Available in multiple lengths, it offers flexibility for different installation requirements. With high color rendering (CRI ≥90), tight color consistency (SDCM ≤3), and optional integrated sensor controls, LOE is an excellent solution for functional and decorative lighting in residential and commercial interiors.
| Wattage | 10Watt/meter |
| CRI | ≥90 |
| SDCM | SDCM ≤3 |
| CCT | 2700K – 3000K – 4000K |
| Light distribution | Diffused Pc |
| Efficiency | up to 126lm/W |
| IP | 44 |
| IK | 05 |
| Application | Recessed Mounted |
| Finish | Anodized Aluminum |
| Dimension | 26 mm |
| Brackets | Included |
| Fitting Life | 91.000h L70B20 (Ta,55°C) – Reported TM-21 L70 Lifetime: >54000 hours report of LM-80 |
| Length | Wattage | CRI | SDCM | 2700K | 3000K | 4000K |
| 2 ft / 620mm | 6 | 95 | ≤3 | 685 | 736 | 760 |
| 3 ft / 920mm | 9 | 95 | ≤3 | 1028 | 1089 | 1140 |
| 4 ft / 1220mm | 12 | 95 | ≤3 | 1370 | 1452 | 1520 |
On/Off 60Watt
On/Off 75Watt
On/Off 100Watt
DALI 240Watt
