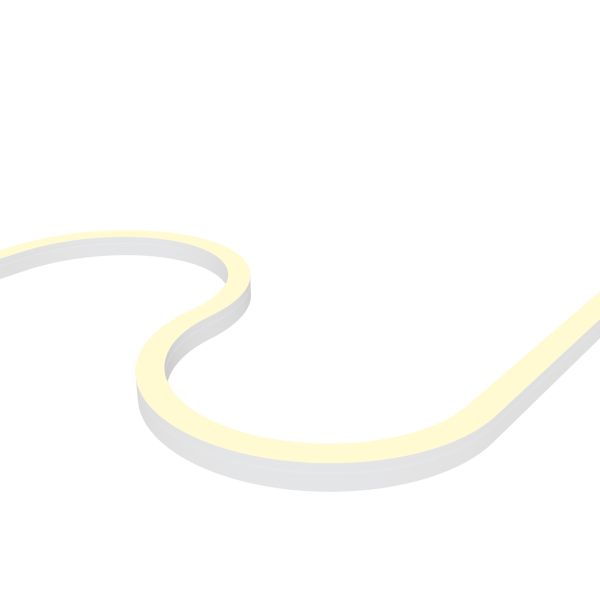

LIMITLESS Mono 16×16 Horizontal Bending is a high-performance flexible NEON LED system designed for architectural linear lighting applications requiring smooth horizontal curves and uniform mono-color illumination. Built using advanced flexible printed circuit (FPC) technology with polyurethane encapsulation, it ensures superior waterproof protection, UV resistance, and long-term durability. With CRI ≥90 and multiple wattage options, it delivers consistent, high-quality light output suitable for outdoor architectural environments.
| Wattage | 5 – 10 or 15 Watt/m |
| Voltage | 24 Volt DC |
| CRI | ≥90 |
| SDCM | ≤3 |

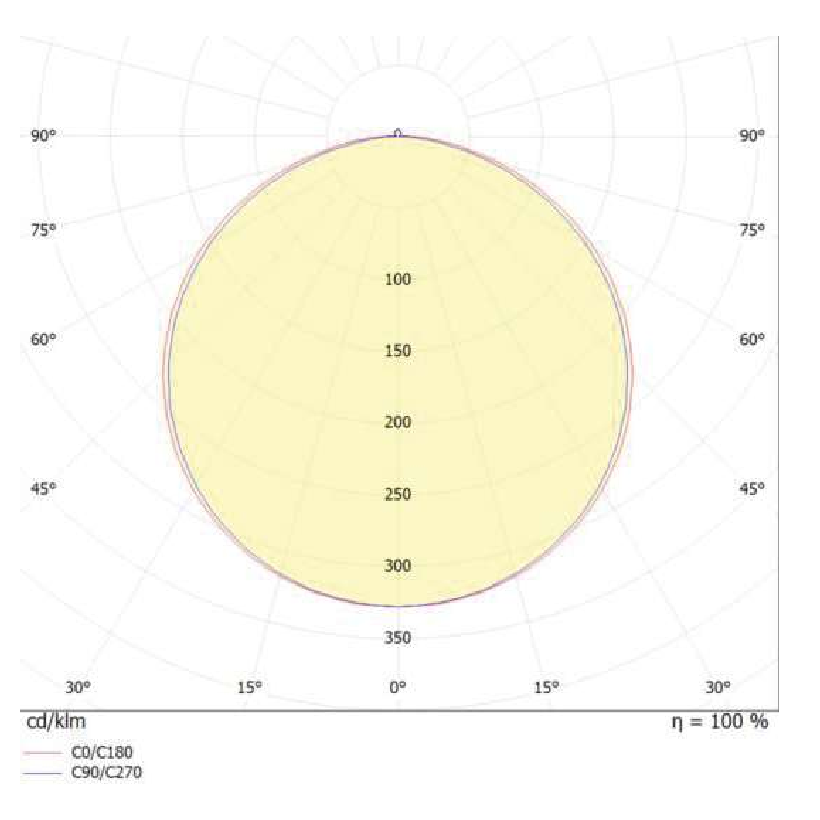

| Light distribution | Diffused 150° |
| IP | 67 |
| Class | III |
| Application | Surface mounted or Recessed |

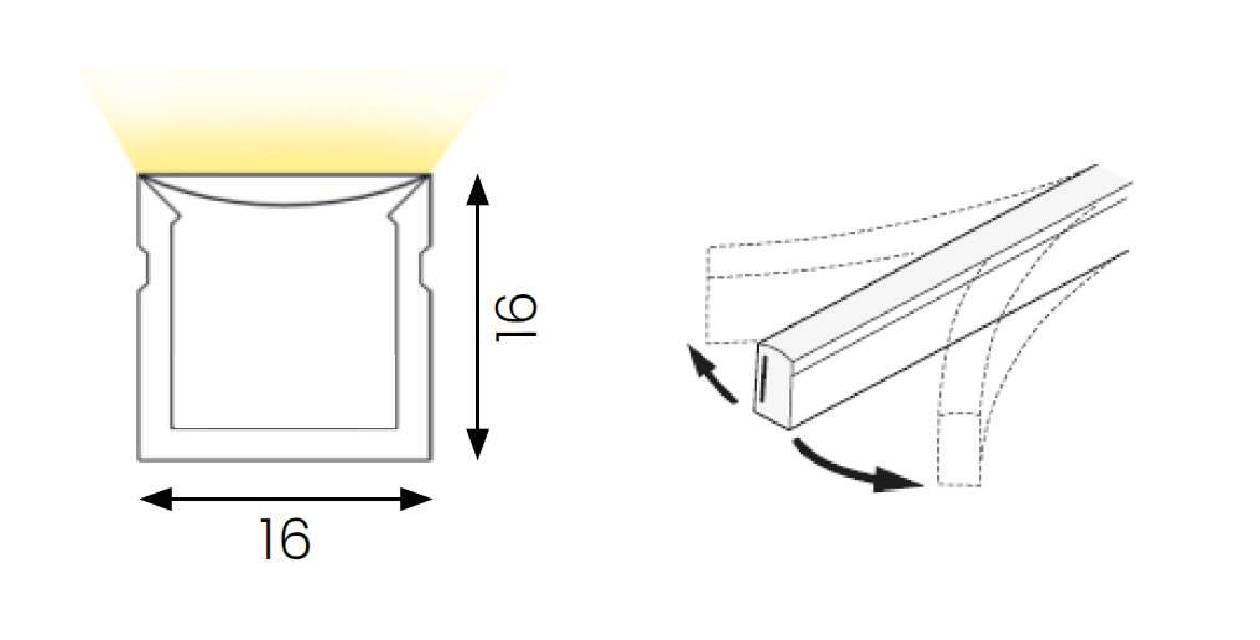

| Dimension | 16 x 16 mm x 5000 / custom |
| Cutting | Every 100 mm |
| Operating Temperature | -20°C / +45°C |
| Fitting Life | L90 B10 (Ta,25°C) – Reported TM-21 L70 – Lifetime: > 54.000h |
| Working Temperature | -20°C ~ +55°C |
| Watt/mt | CRI | SDCM | 2400K | 2700K | 3000K | 4000K | 5000K |
| 5 | 90 | ≤3 | 263 | 273 | 290 | 305 | 313 |
| 10 | 90 | ≤3 | 525 | 545 | 580 | 610 | 625 |
| 15 | 90 | ≤3 | 788 | 818 | 870 | 915 | 938 |
L-AL041 – Kit Aluminum Profile U 2000*19*18
L-AL046 – Kit Aluminum Profile U 2000*19*39
L-AL044 – Kit Aluminum Profile Frame 2000*27*18
L-AL048 – Kit Aluminum Profile Frame 2000*27*37
On/Off IP67 75Watt
On/Off IP67 150Watt
