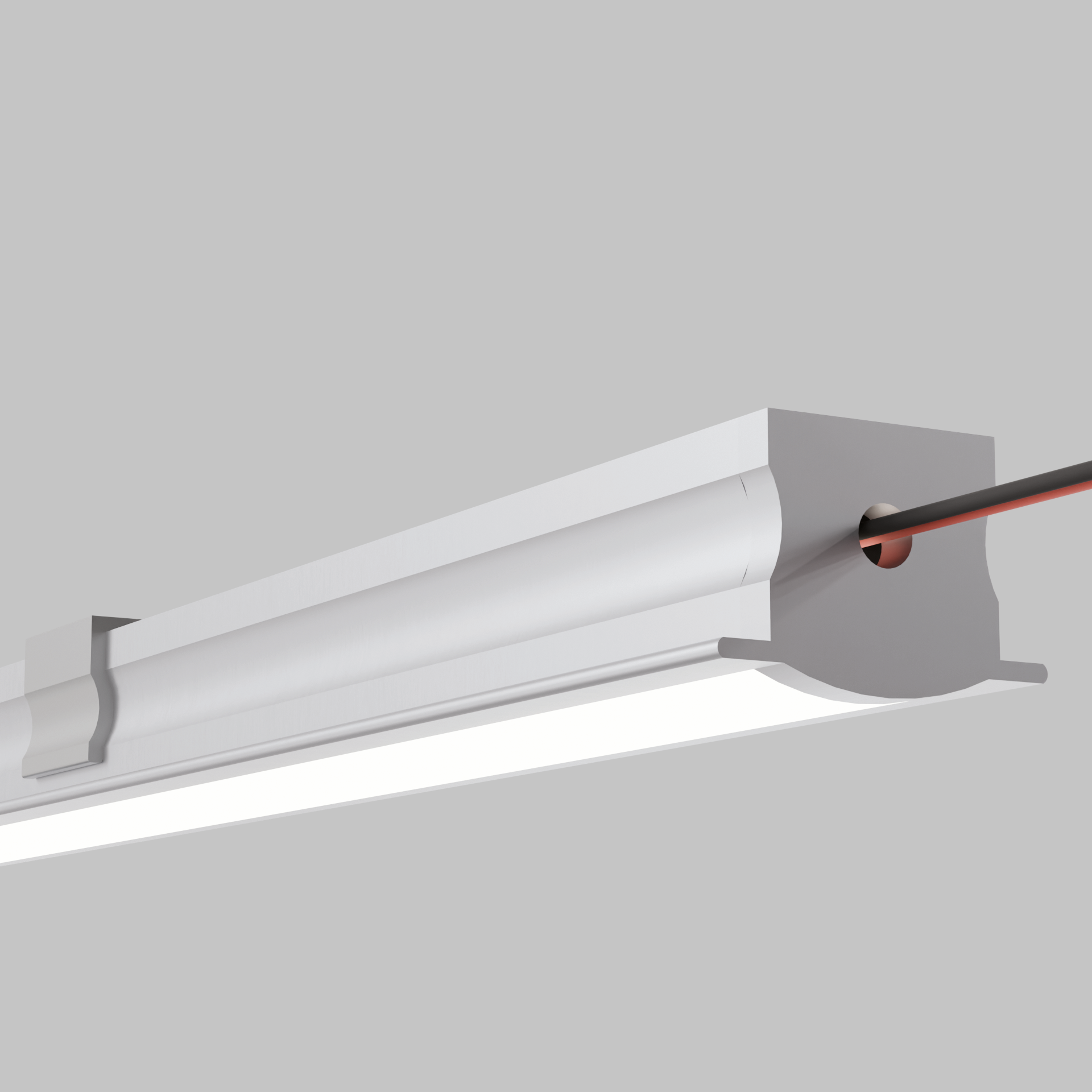

LEO Linear Mono is a compact and efficient linear lighting system designed for cabinet, furniture, and corner profile applications. Operating at 24V with 10W per meter, it delivers uniform and glare-free illumination through a diffused polycarbonate optic, making it ideal for functional indoor lighting.
Manufactured from extruded anodized aluminium, LEO combines durability with a clean and minimal aesthetic. Available in multiple lengths, it provides flexibility for different installation needs. With high color rendering (CRI ≥90), consistent light quality (SDCM ≤3), and optional smart control features, LEO is well-suited for residential, retail, and furniture-integrated lighting solutions.
| Wattage | 10Watt/meter |
| CRI | ≥90 |
| SDCM | SDCM ≤3 |
| CCT | 2700K – 3000K – 4000K |
| Light distribution | Diffused Pc |
| Efficiency | up to 126lm/W |
| IP | 44 |
| IK | 05 |
| Application | Recessed Mounted |
| Finish | Anodized Aluminum |
| Dimension | 22×16 – 620 – 920 – 1220mm |
| Clips | Included |
| Fitting Life | 50.000h |
| Length | Wattage | CRI | SDCM | 2700K | 3000K | 4000K |
| 2 ft / 620mm | 6 | 95 | ≤3 | 685 | 736 | 760 |
| 3 ft / 920mm | 9 | 95 | ≤3 | 1028 | 1089 | 1140 |
| 4 ft / 1220mm | 12 | 95 | ≤3 | 1370 | 1452 | 1520 |
On/Off 60Watt
On/Off 75Watt
On/Off 100Watt
DALI 240Watt
