ECO15 TL Pro

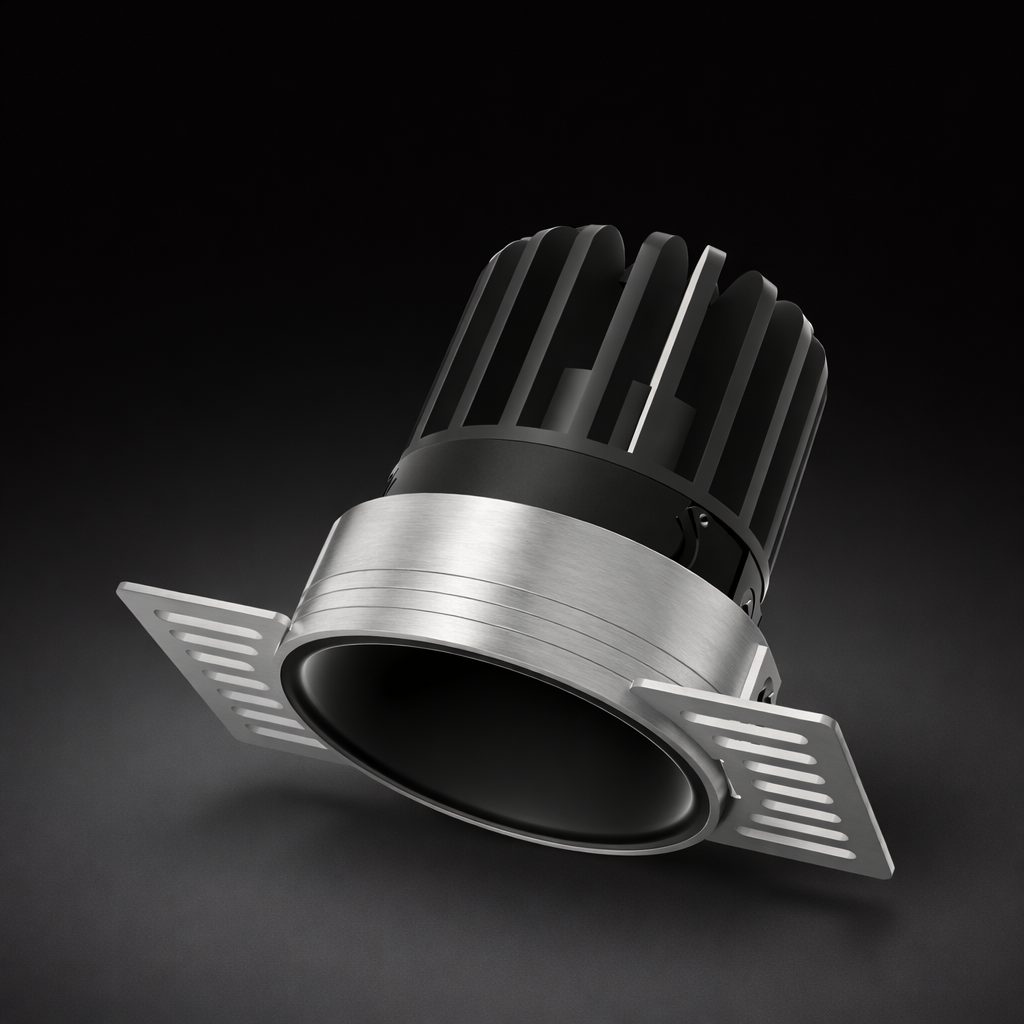

ECO15 TL Pro – Professional downlight Ø 130 Fix

Feature:

Recessed LED ceiling trimless mounted, made of aluminium adapted for Indoor applications, compact design offering ultimate LED technology CRI97, available in white and black powder coating. Included with cable Male & Female 100mm length for easy connection to the driver.

Driver On/Off & Dali available

Specification Product

Wattage	15Watt
CRI	≥97
SDCM	SDCM 2
Light distribution	19° – 24° – 36° – 45°
Springs	Included
IP	44

Technical Data

Application	Recessed
Finish	Powder Coating
Dimension	D70 x H82 mm
Cut – Hole	98mm
Fitting Life	80.000h L80 B20 (Ta ,25°C) – Reported TM-21 L70 Lifetime: >80000 hours

PRODUCT SELECTION

1 Step 1

FormCraft - WordPress form builder

CCT - LUMEN - CRI - SDCM

CCT	CRI	SDCM	15 Watt / FLUX	Delivered Lumen
2700K	97	2	1899	1671
3000K	97	2	1998	1758
4000K	97	2	2128	1873

Download

DATA SHEET & INSTRUCTION

SPECIFICATIONS TEXT

2D

3D

LTD

ACCESSORIES

H-009

Honeycomb louver

D030

On/Off Max 1

D031

DALI-2 Max 1

Specification Product

Wattage	15Watt
CRI	≥97
SDCM	SDCM 2
Light distribution	19° – 24° – 36° – 45°
Springs	Included
IP	44

Technical Data

Application	Recessed
Finish	Powder Coating
Dimension	D70 x H82 mm
Cut – Hole	98mm
Fitting Life	80.000h L80 B20 (Ta ,25°C) – Reported TM-21 L70 Lifetime: >80000 hours

PRODUCT SELECTION

1 Step 1

FormCraft - WordPress form builder

CCT – LUMEN – CRI – SDCM

CCT	CRI	SDCM	15 Watt / FLUX	Delivered Lumen
2700K	97	2	1899	1671
3000K	97	2	1998	1758
4000K	97	2	2128	1873
