COMP9

By /
COMP9
COMP9 - Image 2
COMP9 - Image 3
COMP9 - Image 4
, , , , ,

COMP9

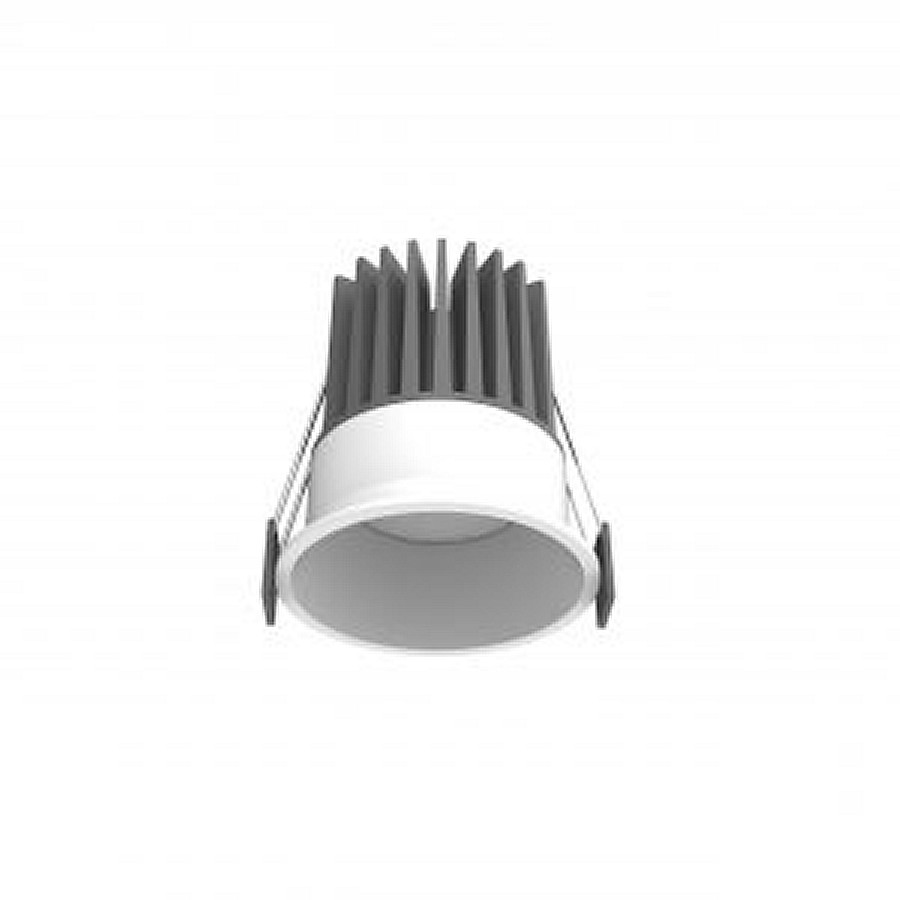

COMP9 – Professional downlight Ø 74 Fix

Feature:

Recessed LED ceiling-mounted, made of aluminium adapt for Indoor applications, compact design offering ultimate LED technology, available in white and black finish powder coating. Included with cable Male & Female 100mm length for easy connection to the driver.

Categories: , , , , ,

Specification Product

Wattage 9Watt
CRI ≥90
SDCM SDCM 2
Light distribution 15° – 24° – 38°
Springs Included
IP 40

Technical Data

Application Recessed Fix
Finish Powder Coating RAL9016 & RAL9005 & Gold
Dimension D74 x H77 mm
Cut – Hole 65 mm
Fitting Life 80.000h L80 B20 (Ta ,25°C) – Reported TM-21 L70 Lifetime: >80000 hours

PRODUCT SELECTION

1 Step 1
1: CCT Initial Code
2: CCT Code
3: Optic Code

ORDER CODE: ​[field1].[field2].[field3]


keyboard_arrow_leftPrevious
Nextkeyboard_arrow_right
FormCraft - WordPress form builder

CCT – LUMEN – CRI – SDCM

CCT CRI SDCM 9 Watt / Flux Delivered Lumen
2700K 90 2 1058 952
3000K 90 2 1099 989
4000K 90 2 1118 1006

Download


DATA SHEET

 INSTRUCTION SHEET

2D

3D

LTD

ACCESSORIES

D028

On/Off Max 1

D031

DALI-2 Max 1
