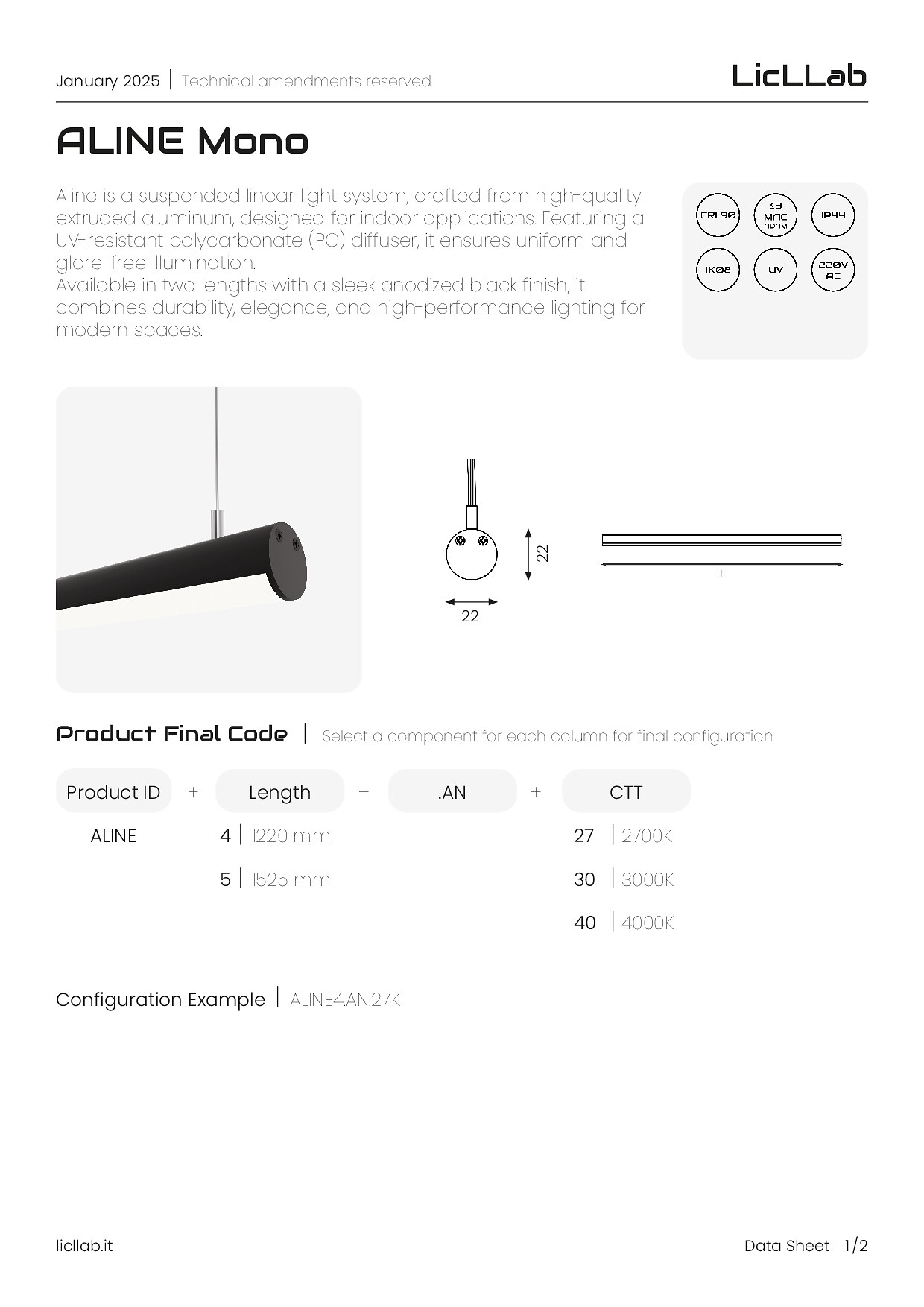

ALINE

ALINE is a suspended architectural linear lighting system designed for modern indoor environments requiring high-performance and visually refined illumination. Built from extruded aluminium with a slim 22mm profile, it delivers a clean architectural appearance combined with strong optical efficiency. The diffused polycarbonate (PC) lens ensures smooth, uniform light output with excellent visual comfort.

Operating on a 24V constant voltage system with 25W per meter, ALINE provides high efficiency lighting performance with CRI ≥90 and tight color consistency (SDCM ≤3). Available in multiple lengths and anodized black finish, it is ideal for offices, commercial interiors, hospitality spaces, and architectural feature lighting.

Specification Product

Wattage 25Watt/meter
CRI ≥90
SDCM SDCM ≤3
CCT 2700K – 3000K – 4000K
Light distribution Diffused Pc
Efficiency up to 135lm/W
IP 44
IK 08

Technical Data

Application Suspended
Finish Anodized Aluminum Black
Dimension 22 mm
Box Driver Included
Fitting Life L90 100.000h; L70B20 (Ta,55°C) Lifetime: >54000h of LM-80

CCT – LUMEN(DELIVERED) – CRI – SDCM

← Scroll to see more →
Length Wattage CRI SDCM 2700K 3000K 4000K
4 ft / 1210mm 28 ≥90 ≤3 2419 2419 2822
5 ft / 1510mm 35 ≥90 ≤3 3024 3024 3528

Key Features

Suspended Architectural Design

Elegant linear profile designed for suspension installations, enhancing modern architectural ceiling aesthetics.

High-Efficiency LED System

Delivers up to 135 lm/W performance with stable and energy-efficient light output.

Uniform Diffused Lighting

PC diffuser ensures smooth, glare-free illumination suitable for visual comfort environments.

Slim Aluminium Construction

Minimal 22mm profile with anodized black finish ensures durability and premium appearance.

Technical Downloads

Download In Your Own Language

Download In Your Own Language

Download In Your Own Language

Download In Your Own Language

Download In Your Own Language

View Accessories

Technical Downloads

View Accessories

Suspended linear LED system
Suspended linear LED system
CRI ≥90
SDCM ≤3 color consistency
IK08 impact resistance
IP44 indoor rating
Aluminium anodized black finish
Up to 100,000h lifetime

Technical Features

Multiple CCT
Options

High Efficiency
lm/W

3M Adhesive
Backing

Single BIN
LED (SDCM ≤3)

Thick Copper
PCB

IP67 Outdoor
Protection
