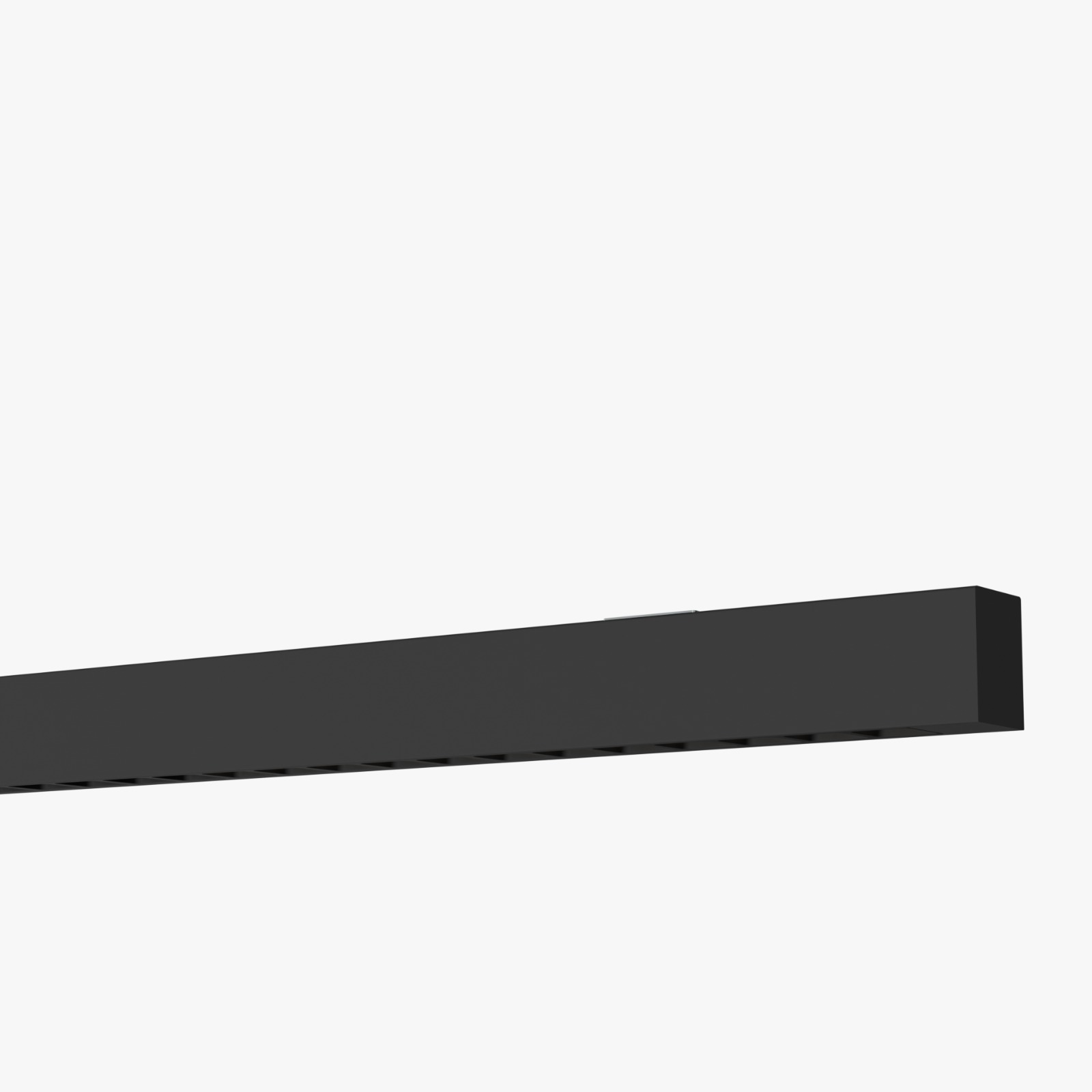

AKIRA Slim Surface is an ultra-compact, high-quality linear lighting system crafted from extruded aluminium for indoor surface-mounted applications. Its slim 15 x 20 mm profile mounts directly to ceilings and walls for minimal, continuous light lines.
Available in three standard lengths or fully customizable, AKIRA Slim comes in two sophisticated powder-coated finishes – white and black. Equipped with high-performance mono-colour LEDs on a rigid circuit board, it delivers a clean light effect with CRI ≥90 for exceptional colour accuracy.
| Wattage | 16Watt/meter – 24Volt CV |
| CRI | ≥90 |
| SDCM | ≤3 |
| CCT | 2700K – 3000K – 4000K |
| Light distribution | 30° – 40° – 25°x60° – Wall Washer |
| IP | 40 |
| IK | 08 |
| Application | Surface mounted |
| Finish | Powder Coating – White & Black |
| Dimension | 15 x 20 mm x length |
| Operating Temperature | -20°C / +40°C |
| Fitting Life | L90 100.000h; L70B20 (Ta,55°C) Lifetime: >54.000h of LM-80 |
| Length | Wattage | CRI | SDCM | 2700K | 3000K | 4000K |
| 285mm | 4.5 | ≥90 | <3 | 688 | 717 | 761 |
| 568mm | 9 | ≥90 | <3 | 1376 | 1434 | 1522 |
| 1128mm | 18 | ≥90 | <3 | 2752 | 2868 | 3044 |
On/Off 7.5 Watt
On/Off 15 Watt
On/Off 30 Watt
Dali 7.5 Watt
Dali 15 Watt
Dali 30 Watt
