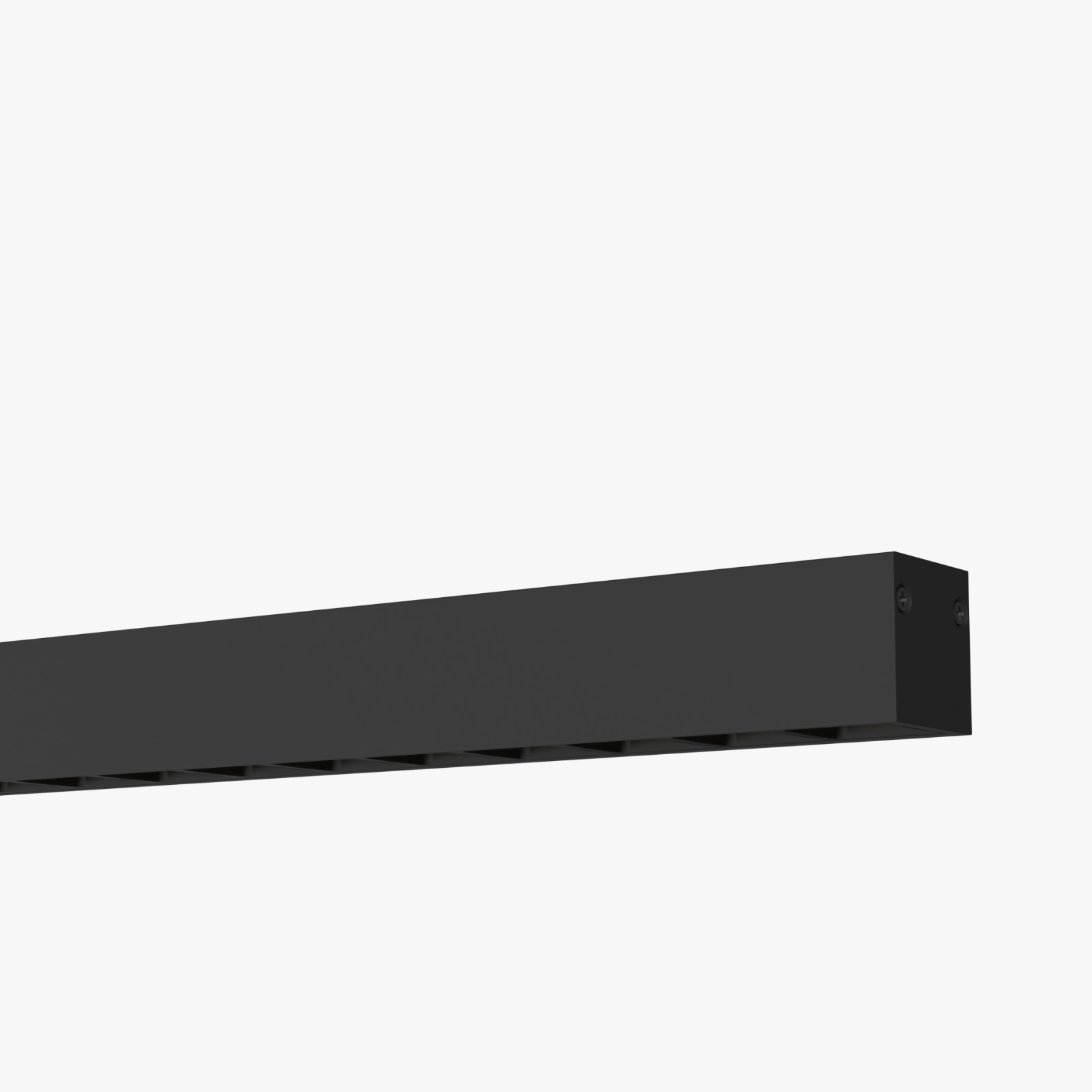

AKIRA Mini Surface is a compact, high-quality linear lighting system crafted from extruded aluminium for indoor surface-mounted applications. Designed with advanced optical solutions, it ensures precise and efficient illumination while maintaining a discreet, refined profile.
Available in three standard lengths or fully customizable, AKIRA Mini comes in two sophisticated powder-coated finishes – white and black. Equipped with high-performance mono-colour LEDs on a rigid circuit board, it delivers a clean diffused light effect with CRI ≥90 for exceptional colour accuracy.
| Wattage | 26Watt/meter – 24Volt CV |
| CRI | ≥90 |
| SDCM | ≤3 |
| CCT | 2700K – 3000K – 4000K |
| Light distribution | 30° – 40° – 65° – Diffused |
| IP | 40 |
| IK | 08 |
| Application | Surface mounted |
| Finish | Powder Coating – White & Black |
| Dimension | 24 x 25 mm x length |
| Operating Temperature | -20°C / +40°C |
| Fitting Life | L90 100.000h; L70B20 (Ta,55°C) Lifetime: >54.000h of LM-80 |
| Length | Wattage | CRI | SDCM | 2700K | 3000K | 4000K |
| 285mm | 7.5 | ≥90 | <3 | 836 | 880 | 969 |
| 568mm | 15 | ≥90 | <3 | 1672 | 1760 | 1939 |
| 1128mm | 30 | ≥90 | <3 | 3344 | 3250 | 3878 |
On/Off 7.5 Watt
On/Off 15 Watt
On/Off 30 Watt
Dali 7.5 Watt
Dali 15 Watt
Dali 30 Watt
