Architectural linear light system Suspended Mono emission light, made of extruded aluminium adapted for Indoor applications, diffuser made on polycarbonate (PC) UV resistance, available in 3 different lengths, and Custom. Available in 4 different finishes, anodized Silver, Powder black, White and Grey. LED mono-colour, diffused light effect, with LEDs rigid circuit, high performance with CRI>90, 24Volt (on-demand built-in Driver), 20W/Meter with SDCM<3 (One Bin Only), lumen and available CCT as reported below. Impact IK08 and protection IP40. Operating ambient temperature from -20°C / +40°C Produced in Italy.

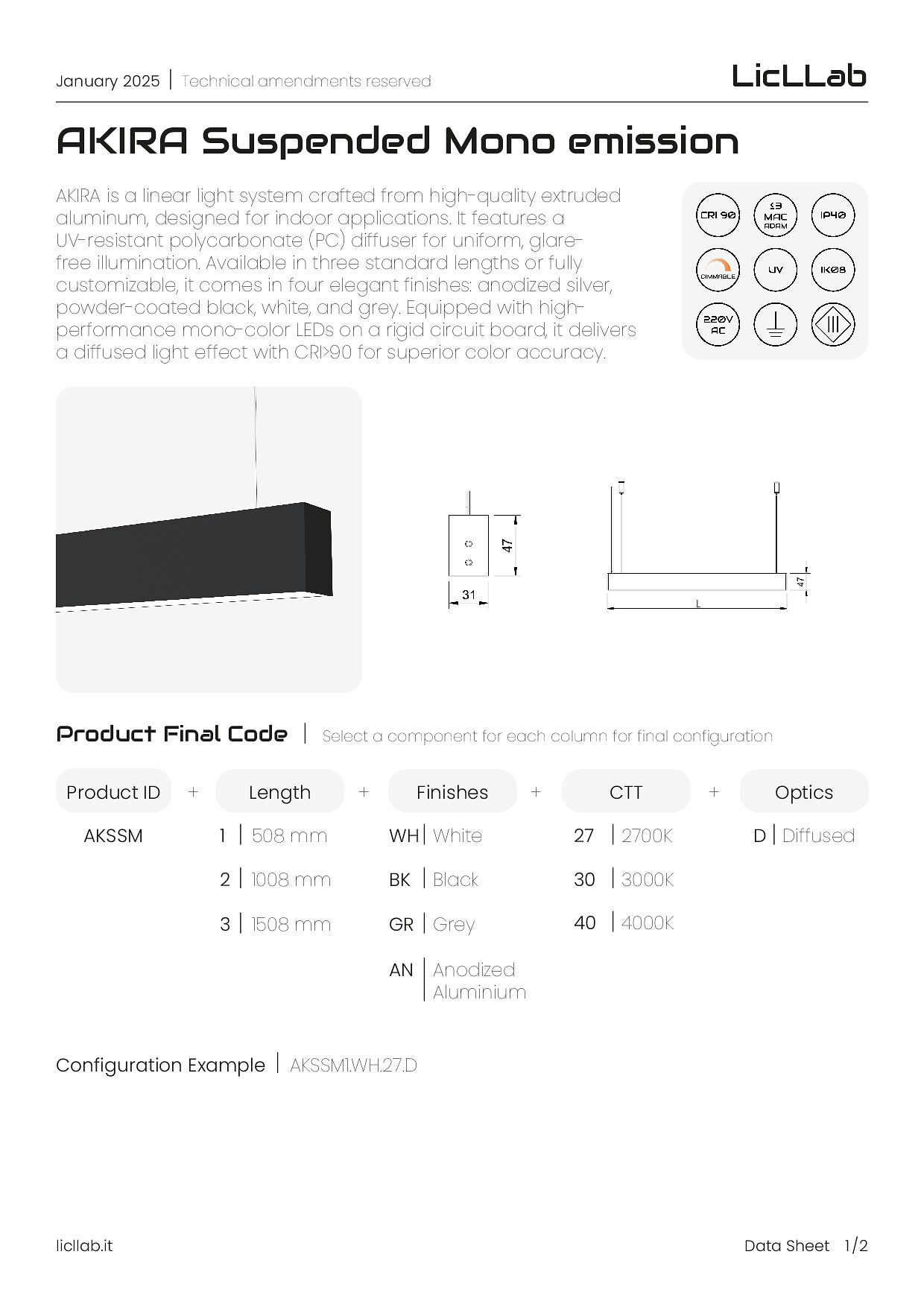

AKIRA Linear Suspended Mono
AKIRA Linear Suspended Mono – CRI>90 24Volt CV 20Watt/Meter SDCM<3
Feature:
PRODUCT SELECTION
Specification Product
| Wattage | 20Watt/meter - 24Volt |
| CRI | ≥90 |
| SDCM | SDCM≤3 single BIN |
| CCT | 2700K - 3000K - 4000K |
| Light distribution | Diffused |
| Efficiency | up to 135lm/W |
| IP | 40 |
| IK | 08 |
Technical Data
| Application | Suspended |
| Finish | Anodized Aluminum Silver, Powder Paint Black, White & Grey. |
| Dimension | 31*47 mm |
| Fitting Life | L90 100.000h; L70B20 (Ta,55°C) Lifetime: >54000h of LM-80 |
PRODUCT SELECTION
CCT - LUMEN - CRI - SDCM
| Length | Wattage | CRI | SDCM | 2700K | 3000K | 4000K |
| 506mm | 10 | >90 | ≤3 | 840 | 920 | 1015 |
| 1006mm | 20 | >90 | ≤3 | 1680 | 1840 | 2030 |
| 1506mm | 30 | >90 | ≤3 | 2520 | 2760 | 3045 |
ACCESSORIES
D021
On/Off 60Watt
D022
On/Off 75Watt
D023
On/Off 100Watt
D026
DALI 100Watt
