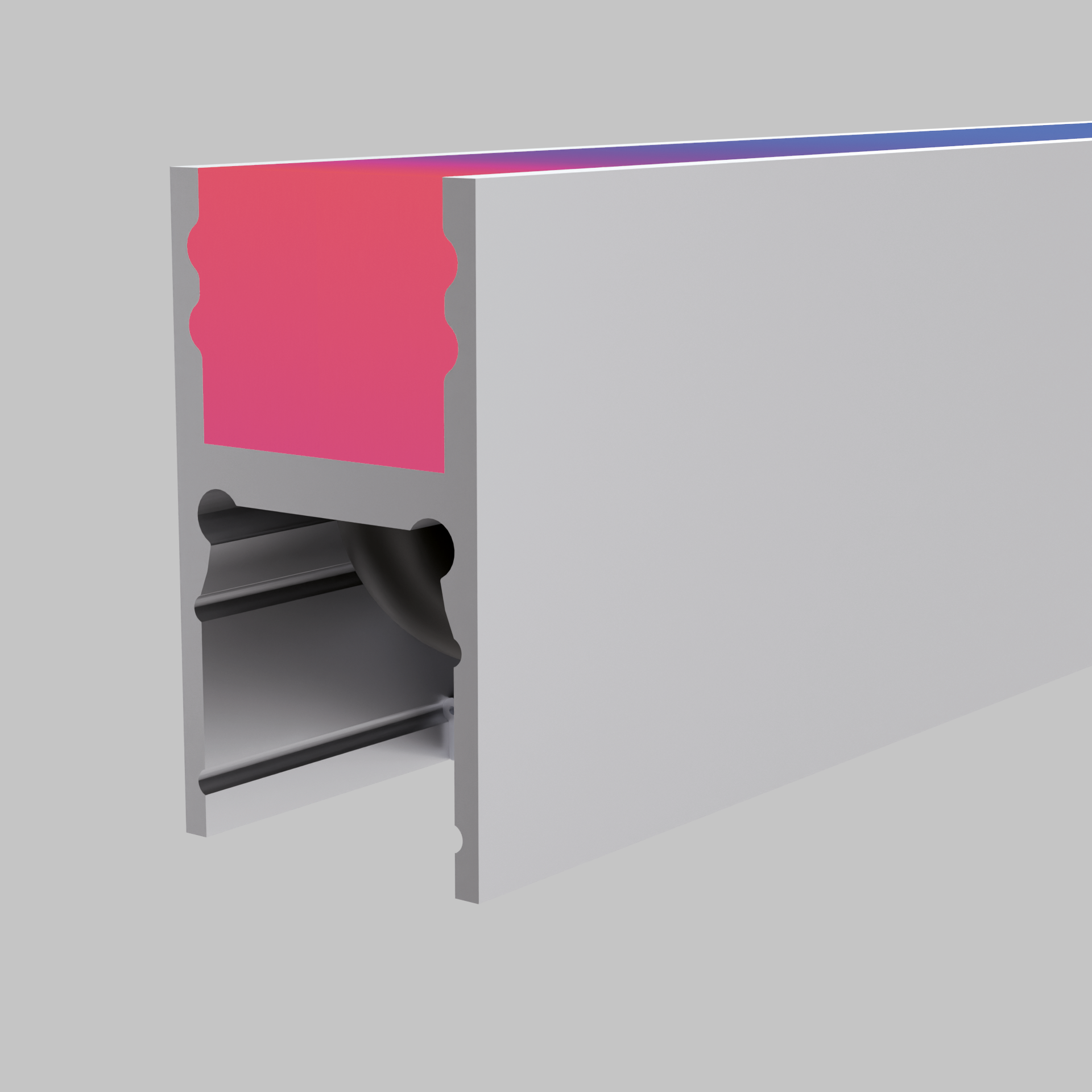

PerfilPlus 35 RGBW – Professional linear, 24Volt CV 12Watt/Meter

Feature:

Professional & Architectural Linear Profile Diffused light effect, made of extruded aluminium adapt for outdoor & Indoor applications, Encapsulation Polyurethane offering ultimate waterproof, UV resistance.

  • LEDRGB + W (3000K)
  • LED RGB + W (5200K)
  • Fully Dimmable
  • Efficiency up to 135lm/W
  • Highest quality SMD 75 LEDs/m
  • 24V DC Input
  • Thick 2oz copper PCB for excellent thermal management
  • IP67

PRODUCT SELECTION

PRODUCT SELECTION

1 Step 1
1: CCT Initial Code
2: CCT Code

ORDER CODE: ​[field1].[field2]

keyboard_arrow_leftPrevious
Nextkeyboard_arrow_right
FormCraft - WordPress form builder

CCT - LUMEN

Length Wattaggio Rosso Verde Blu Bianco LED 3000 Bianco LED 5200 Totale RGB + W 3000 Totale RGB + W 5200
1 ft / 305mm 3.5 84 147 71 168 252 470 554
2 ft / 610mm 7 168 294 143 336 504 941 1109
3 ft / 915mm 10.5 252 441 214 504 756 1411 1663
4 ft / 1220mm 14 336 588 286 672 1008 1882 2218
5 ft / 1525mm 17.5 420 735 357 840 1260 2352 2772

Download

DATA SHEET
INSTRUCTION SHEET
3D
LTD


Accessories

Male M12 Code

L-CB1018 L= 300 L-CB1019 L= 1000 L-CB1020 L= 5000

Female M12

Code

L-CB1021 L= 300 L-CB1022 L= 1000 L-CB1023 L= 5000

Male & Female Extention

Code

L-CB1024 L= 3000 L-CB1025 L= 5000

D001

On/Off IP67 75Watt

PRODUCT SELECTION

1 Step 1
1: CCT Initial Code
2: CCT Code

ORDER CODE: ​[field1].[field2]

keyboard_arrow_leftPrevious
Nextkeyboard_arrow_right
FormCraft - WordPress form builder

CCT – LUMEN

Length Wattaggio Rosso Verde Blu Bianco LED 3000 Bianco LED 5200 Totale RGB + W 3000 Totale RGB + W 5200
1 ft / 305mm 3.5 84 147 71 168 252 470 554
2 ft / 610mm 7 168 294 143 336 504 941 1109
3 ft / 915mm 10.5 252 441 214 504 756 1411 1663
4 ft / 1220mm 14 336 588 286 672 1008 1882 2218
5 ft / 1525mm 17.5 420 735 357 840 1260 2352 2772

Download


DATA SHEET

INSTRUCTION SHEET

3D

LTD



Accessories

Male M12
Code

L-CB1018 L= 300
L-CB1019 L= 1000
L-CB1020 L= 5000

Female M12

Code

L-CB1021 L= 300
L-CB1022 L= 1000
L-CB1023 L= 5000

Male & Female Extention

Code

L-CB1024 L= 3000
L-CB1025 L= 5000

D001

On/Off IP67 75Watt
