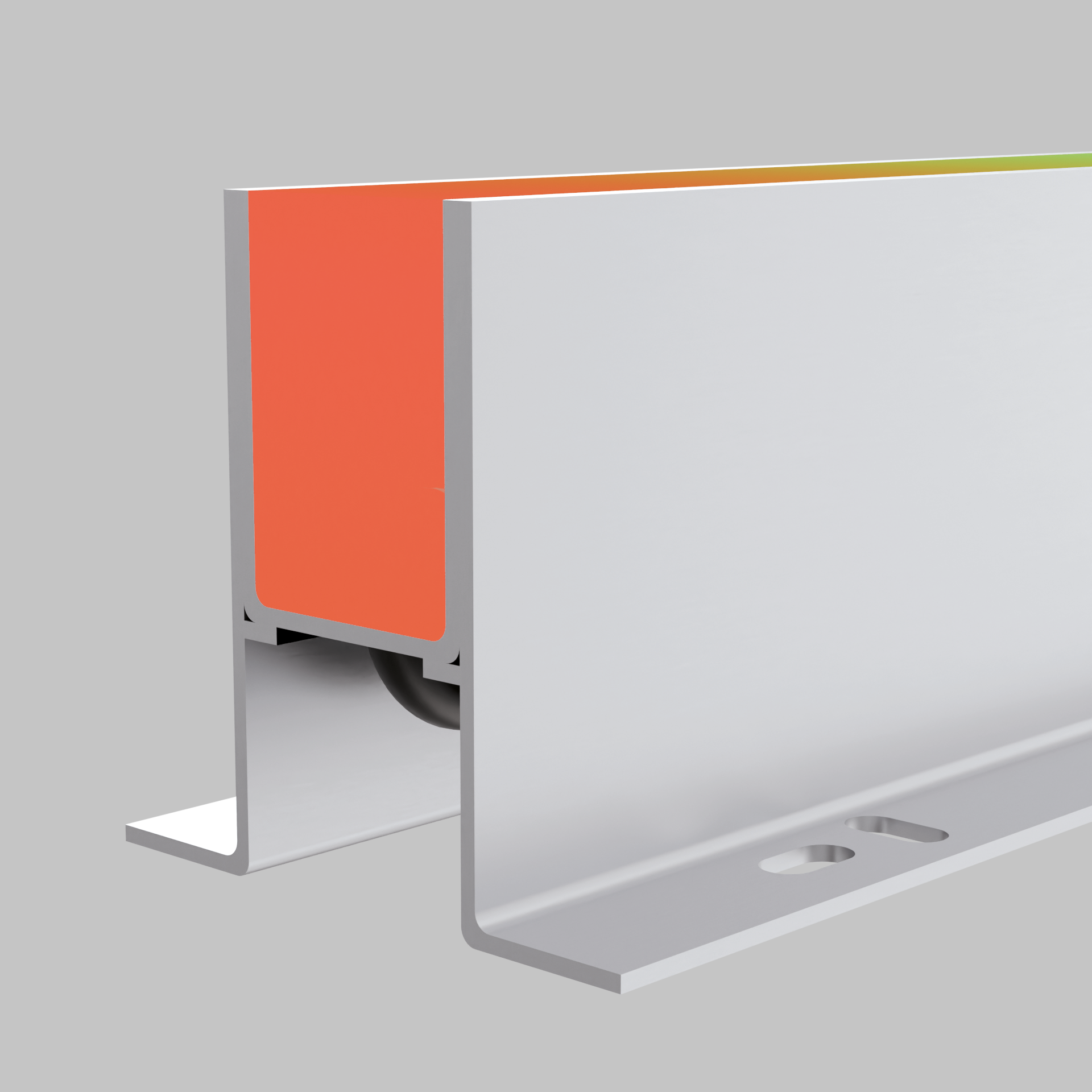

Perfil AISI Linear RGBW 4in1 – 24Volt CV 15Watt/Meter

Feature:

Architectural Linear Profile recessed inground drive-over, made of AISI 316L adaptable for outdoor applications, with encapsulation polyurethane offering ultimate waterproof, UV resistance, available in 4 different lengths, IK10 and IP67/68

Available on request PIxel Pitch control 4in1.

PRODUCT SELECTION

Specification Product

Wattage 15Watt/meter
LED ≥RGB+W 4in1
Light distribution Polyurethane Resin
IP 67/68
IK Polyurethane Resin
IP 10
Static Load 5000 Kg

Technical Data

Application Recessed
Finish 316L AISI
Dimension 28 mm
Casing AISI 316L
Fitting Life 53.000h L80 B20 (Ta ,25°C) – Reported TM-21 L70 Lifetime: >54000 hours

PRODUCT SELECTION

1 Step 1
1: CCT Initial Code

ORDER CODE: ​[field1]


keyboard_arrow_leftPrevious
Nextkeyboard_arrow_right
FormCraft - WordPress form builder

CCT - LUMEN(delivered) - CRI - SDCM

Length Wattage CRI SDCM Red Green Blue White 3000 Total RGB + W 3000
1 ft / 310mm 5 90 ≤3 84 147 71 168 410
2 ft / 610mm 9 90 ≤3 168 294 143 336 941
3 ft / 910mm 14 90 ≤3 252 441 214 504 1411
4 ft / 1210mm 18 90 ≤3 336 588 286 672 1882

Download

DATA SHEET
 INSTRUCTION SHEET
2D
3D
LTD


Cable ACCESSORIES

Male Connector M12 5 x 0.35 mm Code

L-CB1018 L= 300 L-CB1019 L= 1000 L-CB1020 L= 5000

Female Connector M8 4 x 0.35 mm Code

L-CB1021 L= 300 L-CB1022 L= 1000 L-CB1023 L= 5000

Male & Female extension Connector M12 5 x 0.35 mm Code

L-CB1024 L= 3000 L-CB1025 L= 5000

Male & Female extension Connector M12 5 x 0.35 mm Code

L-CB1024 L= 3000 L-CB1025 L= 5000

Specification Product

Wattage 15Watt/meter
LED ≥RGB+W 4in1
Light distribution Polyurethane Resin
IP 67/68
IK Polyurethane Resin
IP 10
Static Load 5000 Kg

Technical Data

Application Recessed
Finish 316L AISI
Dimension 28 mm
Casing AISI 316L
Fitting Life 53.000h L80 B20 (Ta ,25°C) – Reported TM-21 L70 Lifetime: >54000 hours

PRODUCT SELECTION

1 Step 1
1: CCT Initial Code

ORDER CODE: ​[field1]


keyboard_arrow_leftPrevious
Nextkeyboard_arrow_right
FormCraft - WordPress form builder

CCT – LUMEN(delivered) – CRI – SDCM

Length Wattage CRI SDCM Red Green Blue White 3000 Total RGB + W 3000
1 ft / 310mm 5 90 ≤3 84 147 71 168 410
2 ft / 610mm 9 90 ≤3 168 294 143 336 941
3 ft / 910mm 14 90 ≤3 252 441 214 504 1411
4 ft / 1210mm 18 90 ≤3 336 588 286 672 1882

Download


DATA SHEET
 INSTRUCTION SHEET

2D

3D

LTD



Cable ACCESSORIES

Male Connector M12 5 x 0.35 mm
Code

L-CB1018 L= 300
L-CB1019 L= 1000
L-CB1020 L= 5000

Female Connector M8 4 x 0.35 mm
Code

L-CB1021 L= 300
L-CB1022 L= 1000
L-CB1023 L= 5000

Male & Female extension Connector M12 5 x 0.35 mm
Code

L-CB1024 L= 3000
L-CB1025 L= 5000

Male & Female extension Connector M12 5 x 0.35 mm
Code

L-CB1024 L= 3000
L-CB1025 L= 5000
