ACQUA Mini

ACQUA Mini

ACQUA Mini

Feature:

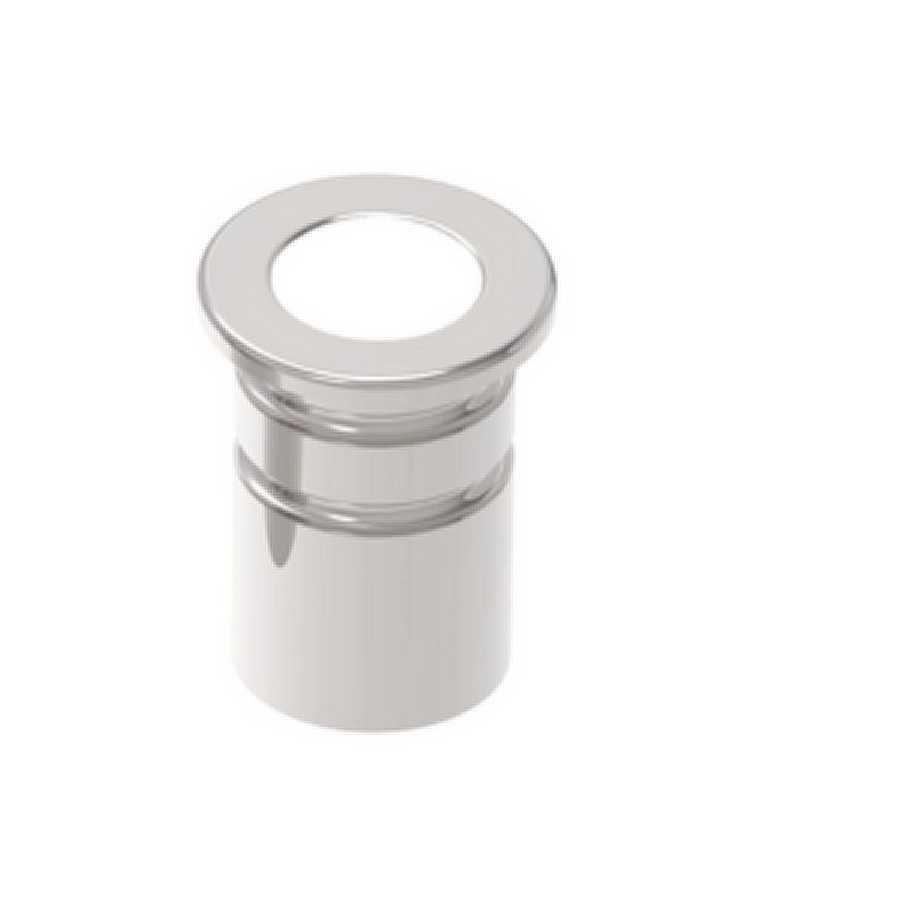

Professional architectural Uplight recessed, full LED engine, made of AISI 316L adapt for Pool and landscape applications, compact
design offering ultimate LED technology, available fully made of AISI 316L. LED Power mono-colour, available optics Diffused, high performance with CRI>90
SDCM 2 (One Bin Only), lumen and available CCT as reported below. Cable included 3 meters.
Protection IP68 IK10

PRODUCT SELECTION

Specification Product

Wattage 1 -2Watt
CRI ≥90
SDCM SDCM≤3 single BIN
CCT 2700K – 3000K – 4000K
Light distribution Polyurethane Resin
IP 68
IK 10

Technical Data

Application Recessed
Finish 316L AISI
Dimension 18 mm
Casing AISI 316L
Fitting Life 53.000h L80 B20 (Ta ,25°C) – Reported TM-21 L70 Lifetime: >54000 hours

PRODUCT SELECTION

1 Step 1
1: CCT Initial Code


ORDER CODE: ​[field1]

keyboard_arrow_leftPrevious
Nextkeyboard_arrow_right
FormCraft - WordPress form builder

CCT - LUMEN(DELIVERED) - CRI - SDCM

Wattage CRI SDCM 2700K 3000K 4000K
1 90 ≤3 117 117 119

Download

DATA SHEET
  INSTRUCTION SHEET
2D
3D
LTD


ACCESSORIES

D082

On/Off Min 1 – Max 10 350mA

D081

On/Off Min 1 – Max 6 700mA

L-CAS001

Casing

Specification Product

Wattage 1 -2Watt
CRI ≥90
SDCM SDCM≤3 single BIN
CCT 2700K – 3000K – 4000K
Light distribution Polyurethane Resin
IP 68
IK 10

Technical Data

Application Recessed
Finish 316L AISI
Dimension 18 mm
Casing AISI 316L
Fitting Life 53.000h L80 B20 (Ta ,25°C) – Reported TM-21 L70 Lifetime: >54000 hours

PRODUCT SELECTION

1 Step 1
1: CCT Initial Code


ORDER CODE: ​[field1]

keyboard_arrow_leftPrevious
Nextkeyboard_arrow_right
FormCraft - WordPress form builder

CCT – LUMEN(DELIVERED) – CRI – SDCM

Wattage CRI SDCM 2700K 3000K 4000K
1 90 ≤3 117 117 119

Download


DATA SHEET
  INSTRUCTION SHEET

2D

3D

LTD



ACCESSORIES

D082

On/Off Min 1 – Max 10 350mA

D081

On/Off Min 1 – Max 6 700mA

L-CAS001

Casing
